AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Compact Cassette

Indoor Unit Systems: ACUH09LUAS1, ACUH12LUAS1, ACUH18LUAS1

Model

Cooling9,000 BTU/h
Heating12,000 BTU/h
09LUAS1
Cooling12,000 BTU/h
Heating16,000 BTU/h
12LUAS1
Cooling17,100 BTU/h
Heating21,600 BTU/h
18LUAS1

Features

High energy efficiency

- High energy efficiency of SEER 22.5 and HSPF 12.5 is achieved by 09 model.

- Registered for year 2020 ESME

- Clear the NEEP standard for rebate. (e.g. Vermont and Nova Scotia)

High durability

High durability of indoor unit is achieved by using HCRC (High Corrosion Resistant Copper) for the indoor unit heat exchanger.

Through accelerated lab tests, testing has proven to show that HCRC (High Corrosion Resistant Copper) is resilient and stronger than the standard and Oxygen-Free Copper when exposed to corrosive environments.

High durability

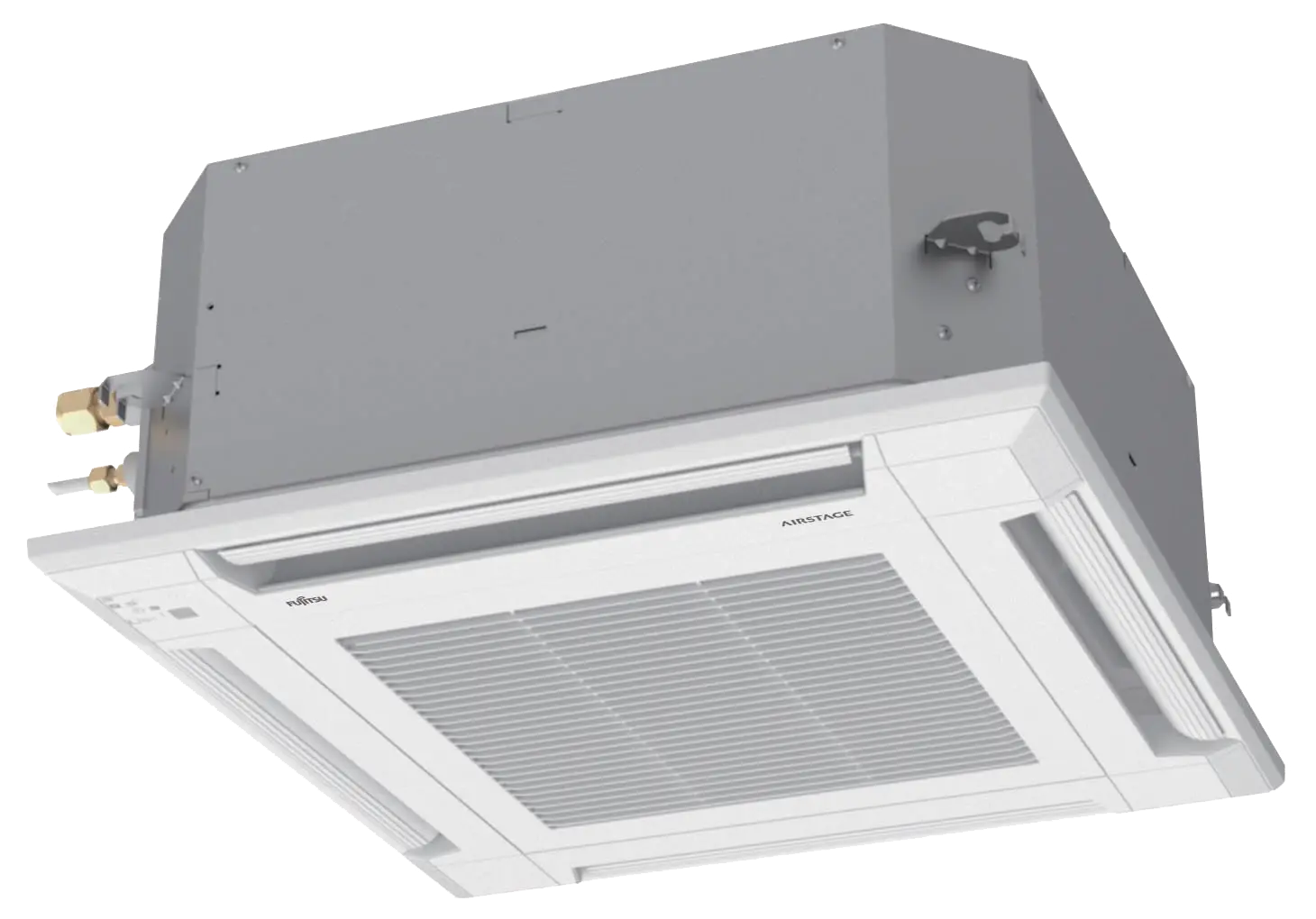

Cassette Model Fits Into Standard Ceiling Tile

Cassette Model Fits Into Standard Ceiling Tile

2-Stage Turbo Fan

2-Stage Turbo Fan

Air distribution is evenly spread across the heat exchanger by the 2 stage turbo fan which produces two separate airflow streams.

Quiet Operation

Optimization of wing form (laminar wing design) and number of wings (7 blades) enables as low as 27 dB.

Multiple controller options available

Wireless remote controller

Wireless remote controller

Wired remote controller

Wired remote controller

Simple remote controller

Simple remote controller

Smart System: Auto Mode

When the system is initially turned on, the fan speed is HIGH to reach the set temperature as quickly as possible. The fan speed will automatically adjust downward as the room begins to reach the set temperature.

Humidity Control

This system features Dry Mode, which helps to control humidity levels, even when cooling may not be needed.

Fresh Air Intake

Outside air can be introduced by attaching field supplied flexible duct to fresh air knockouts. Requires Part #UTZ-VXAA.

Other Standard Features Include:

Auto Restart/Reset: Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored.
Auto Restart/Reset
Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored.
Auto Changeover
High Ceiling Mode: Temperature at the top of a high ceiling room may be warmer than the space occupied; this mode adjusts for this difference.
High Ceiling Mode
Cold Prevention: Indoor coil will warm prior to fan operating, preventing cold air during heating mode.
Cold Prevention
Low Ambient Cooling: Can operate in cooling mode even when outdoor ambient is 0°F, 14°F or 32°F, depending on model, without modification. Operation outside of factory specification is not recommended.
Low Ambient
