AIRSTAGE™ VRF Systems Indoor Unit Lineup

66 models of 12 types, with capacity ranging from 1.1 to 28.0 kW

Indoor units for the AIRSTAGE™ VRF Systems are compact, highly efficient, quiet, and user-friendly. They are easy to install and maintain and have exterior design features that fit nicely with any room decor. In addition, a variety of optional parts are available to provide an even more desirable air conditioning experience to occupants.

Cassette Type

	Capacity Range
Model Code	7	9	12	14	18	24	30	34	36	45	54
Capacity (kW)	2.2	2.8	3.6	4.5	5.6	7.1	9.0	10.0	11.2	12.5	14.0
3D Flow Cassette					AUXS018GLEH	AUXS024GLEH

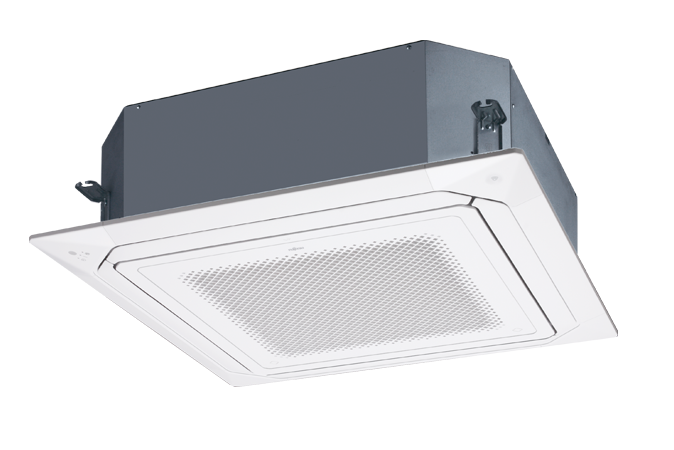

Circular Flow Cassette (Large Type)					AUXK018GLEH	AUXK024GLEH	AUXK030GLEH	AUXK034GLEH	AUXK036GLEH	AUXK045GLEH	AUXK054GLEH
Compact Grid Standard Type	AUXB07GLEH	AUXB009GLEH	AUXB012GLEH	AUXB014GLEH	AUXB018GLEH	AUXB024GLEH
4-way Cassette (Slim Type)					AUXD18GALH	AUXD24GALH
4-way Cassette (Large Type)					AUXA18GALH	AUXA24GALH	AUXA30GALH		AUXA36GALH	AUXA45GALH	AUXA54GALH

Scroll

Duct Type

	Capacity Range
Model Code	7	9	12	14	18	24	30	34	36	45	60	72	90
Capacity (kW)	2.2	2.8	3.6	4.5	5.6	7.1	9.0	10.0	11.2	12.5	18.0	22.4	25.0
Slim Duct	ARXD007GLEH	ARXD009GLEH	ARXD012GLEH	ARXD014GLEH	ARXD018GLEH	ARXD024GLEH
Medium Static Pressure Duct						ARXA024GLEH	ARXA030GLEH		ARXA036GLEH	ARXA045GLEH
High Static Pressure Duct									ARXC036GTEH	ARXC45GATH	ARXC60GATH	ARXC072GTEH	ARXC090GTEH

Scroll

Ceiling Type

	Capacity Range
Model Code	12	14	18	24	30	36	45	54
Capacity (kW)	3.6	4.5	5.6	7.1	9.0	11.2	12.5	14.0
Ceiling	ABYA012GTEH	ABYA014GTEH	ABYA018GTEH	ABYA024GTEH	ABYA030GTEH	ABYA036GTEH	ABYA045GTEH	ABYA054GTEH

Scroll

Wall Mounted Type

	Capacity Range
Model Code	7	9	12	14	18	24	30
Capacity (kW)	2.2	2.8	3.6	4.5	5.6	7.1	9.0
Wall Mount	ASYA07GACH	ASYA09GACH	ASYA12GACH	ASYA14GACH	ASYA18GBCH	ASYA24GBCH	ASYA30GACH

Scroll
