Wall Mount Standard Series (High Efficiency & Comfort) ASEH12KMCG-B

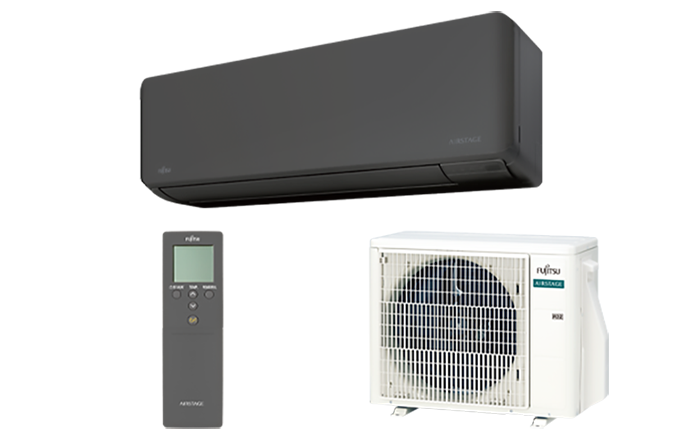

Indoor unit, remote controller, outdoor unit

All DC R32 refrigerant
Indoor Unit :
ASEH12KMCG-B
Outdoor Unit :
AOEH12KMCG
Download :
Catalogues

Features

  • Slim and stylish square design
  • Comfortable airflow and quiet operation
  • Outstanding energy-saving performance
  • Smart device control
  • Easy access to the flare pipe connection

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. 10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied. Low noise mode: Reduces the noise level of an outdoor unit. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Filter sign: Indicates the filter cleaning period by blinking. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air. Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Capacity

Cooling   3.4 kW
Heating   4.0 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 3.4 (0.9 - 3.9) kW
Heating 4.0 (0.9 - 5.3) kW
Input Power Cooling 0.960 kW
Heating 1.020 kW
EER Cooling 3.54 W/W
COP Heating 3.92 W/W
Pdesign Cooling 3.4 kW
Heating (-10°C) 2.5 kW
SEER Cooling 7.70 W/W
SCOP Heating (Average) 4.60 W/W
Heating (Warmer) 5.40 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A++
Heating (Warmer) A+++
Max. Operating Current Cooling 6.50 A
Heating 9.00 A
Annual Energy Consumption Cooling 155 kWh/a
Heating (Average) 761 kWh/a
Heating (Warmer) 337 kWh/a
Moisture Removal 1.80 l/h
Sound Pressure Level*2 Indoor (Cooling) High 40 dB(A)
Middle 35 dB(A)
Low 30 dB(A)
Quiet 20 dB(A)
Indoor (Heating) High 42 dB(A)
Middle 38 dB(A)
Low 33 dB(A)
Quiet 22 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 50 dB(A)
Outdoor (Heating) High 50 dB(A)
Sound Power Level Indoor (Cooling) High 55 dB(A)
Indoor (Heating) High 58 dB(A)
Outdoor (Cooling) High 65 dB(A)
Outdoor (Heating) High 65 dB(A)
Airflow Rate Indoor (Cooling) High 700 m³/h
Outdoor (Cooling) High 1700 m³/h
Net Dimensions
Indoor		 Height 270 mm
Width 834 mm
Depth 222 mm
Net Dimensions
Outdoor		 Height 541 mm
Width 663 mm
Depth 290 mm
Net Weight Indoor 10.0 kg
Outdoor 24.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max. Pipe Length (Pre Charge) 20.0 (15.0) m
Max. Height Difference 15 m
Operation Range Cooling -10 to 50 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 700 g (0.473 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ASEH12KMCG-B

Indoor unit
