Ceiling ABEG30KRTA

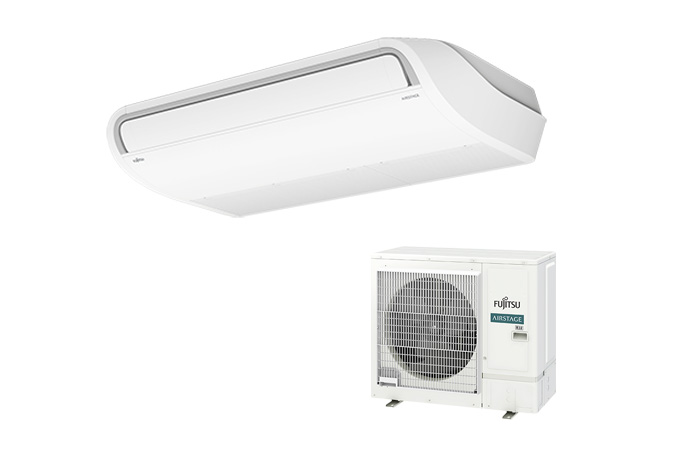

Indoor unit, Remote controller, Outdoor unit

ALL DC
Indoor Unit :
ABEG30KRTA
Outdoor Unit :
AOEG30KBTB
Download :
Catalogues

Features

  • Light elegant design
  • Flexible and easy installation
  • Easy maintenance

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. Weekly timer: Different ON-OFF times can be set for each day. Filter sign: Indicates the filter cleaning period by blinking. External ON/OFF input Special Cooling: Special Cooling

Capacity

Cooling   8.5 kW
Heating   10.0 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 8.5 (2.8 - 10.0) kW
Heating 10.0 (2.7 - 11.2) kW
Input Power Cooling 2.650 kW
Heating 2.770 kW
EER Cooling 3.21 W/W
COP Heating 3.61 W/W
Pdesign Cooling 8.5 kW
Heating (-10°C) 8.0 kW
SEER Cooling 6.10 W/W
SCOP Heating (Average) 4.00 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 22.60 A
Heating 22.60 A
Annual Energy Consumption Cooling 486 kWh/a
Heating 2796 kWh/a
Moisture Removal 3.00 l/h
Sound Pressure Level*2 Indoor (Cooling) High 45 dB(A)
Middle 40 dB(A)
Low 35 dB(A)
Quiet 32 dB(A)
Indoor (Heating) High 45 dB(A)
Middle 40 dB(A)
Low 35 dB(A)
Quiet 32 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 53 dB(A)
Outdoor (Heating) High 55 dB(A)
Sound Power Level Indoor (Cooling) High 60 dB(A)
Indoor (Heating) High 60 dB(A)
Outdoor (Cooling) High 68 dB(A)
Outdoor (Heating) High 69 dB(A)
Airflow Rate Indoor (Cooling) High 1400 m³/h
Outdoor (Cooling) High 3750 m³/h
Net Dimensions
Indoor		 Height 235 mm
Width 1390 mm
Depth 705 mm
Net Dimensions
Outdoor		 Height 788 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 31.0 kg
Outdoor 52.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 50.0 (30.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1900 g (1.283 CO2eq–T)
Scroll

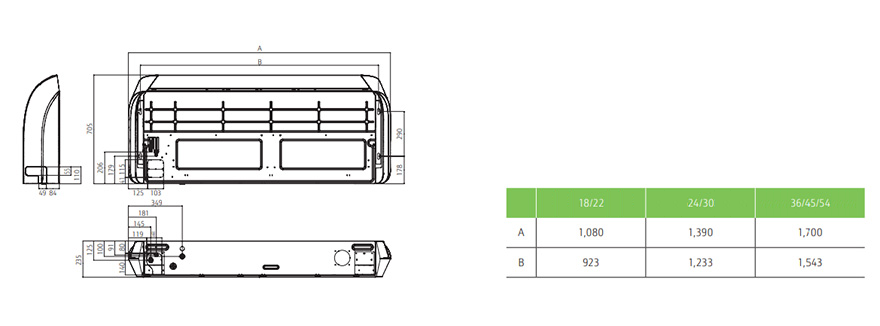

Dimensions

Indoor Unit : ABEG30KRTA

Indoor unit
