Wall Mounted iMax ASMG24CGTA

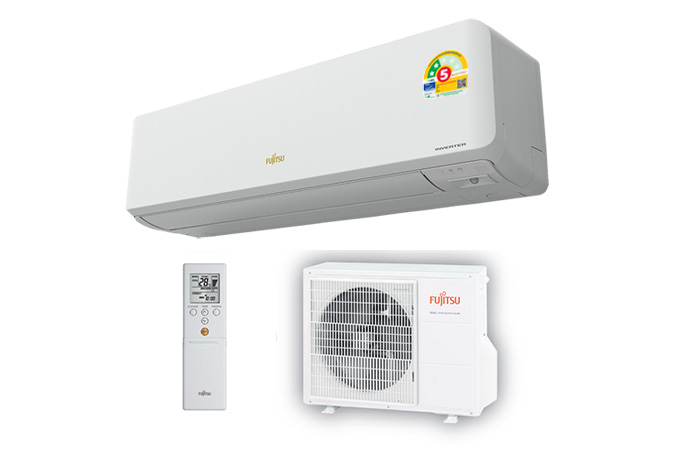

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty RANK : 5★★
Indoor Unit :
ASMG24CGTA
Outdoor Unit :
AOMG24CGTA
Download :
Catalogue

Features

  • Human sensor’s coverage
  • Air conditioner filter features

Feature Explanation Icons

Save human sensor : Human sensor detects the movement of people in the room and judges whether the energy saving operation. Up / down swing flaps : The up / down flaps automatically swing up and down. Economy mode : Thermostat setting automatically changes according to the temperature to avoid unnecessary cooling and heating. Filter sign : Indicates the filter cleaning period by lamp. Powerful mode : Operation at maximum air flow and compressor speed, and quickly makes the room comfortable. Low noise mode : Sound noise level of outdoor unit can be selected. Double swing automatic : Complex swing action of flaps enables automatically to swing both horizontal and vertical directions. Automatic fan speed : The micro-computer automatically adjusts the airflow effectively to follow the changes of room temperature. Sleep timer : The micro-computer gradually changes the room temperature automatically to afford a comfortable night's sleep. Weekly timer : Different ON-OFF times can be set for each day. Ion deodorization filter : The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra-fine-particle ceramic. Apple-catechin filter : The Apple-catechin filter uses static electricity to clean fine particles and dust in the air.

Capacity

Cooling   6.9 kW

RANK : 5★★


Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
Capacity Cooling 23500 (3800 - 27300) BTU/h
6.9 (1.1 - 8.0) kW
Input Power Cooling 2.200 kW
EER Cooling 3.14 W/W
SEER Cooling 20.62 W/W
Max. Operating Current Cooling 13.0 A
Moisture Removal 2.7 l/h
Sound Pressure Level Indoor (Cooling) High 49 dB(A)
Middle 41 dB(A)
Low 35 dB(A)
Quiet 29 dB(A)
Sound Pressure Level Outdoor (Cooling) High 54 dB(A)
Air Flow Rate Indoor (Cooling) High 1170 m3/h
Outdoor (Cooling) High 3240 m3/h
Net Dimensions
Indoor
Height 280 mm
Width 980 mm
Depth 240 mm
Net Dimensions
Outdoor
Height 716 mm
Width 820 mm
Depth 315 mm
Net Weight Indoor 12.5 kg
Outdoor 41.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max Pipe Length (Pre Charge) 30 (15.0) m
Max Height Difference 25 m
Operation Range Cooling 18 to 46 °CDB
Refrigerant Type R32
Charge 1320 g
