Wall Mounted ASMA30FUTA

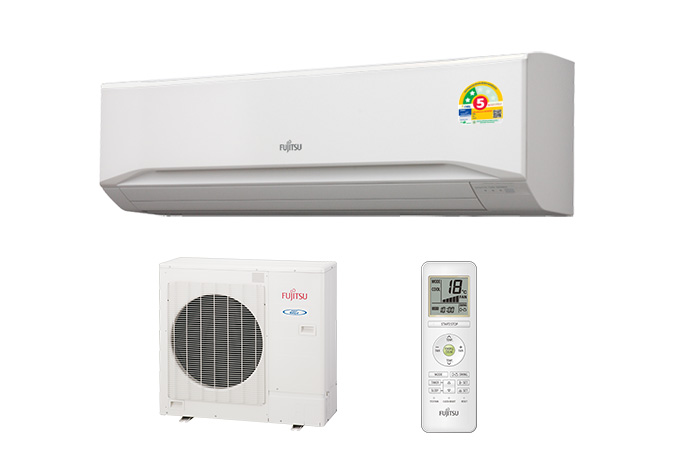

Hydraulic unit and Outdoor unit

R410A 10 Years Warranty RANK : 2
Indoor Unit :
ASMA30FUTA
Outdoor Unit :
AOMA30FUTAS
Download :
Catalogues

Features

  • Powerful airflow
  • 6 speed control
  • High energy saving
  • Wide operation range

Feature Icons

Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic double swings: Activates complex swing action of the louver in both horizontal and vertical directions. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON.

Capacity

Cooling   8.1 kW

RANK : 5★★

Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
EGAT Capacity Cooling 28839 BTU/h
SEER 13.76 BTU/h
Rank 5 ★★
Capacity Cooling 8.1 kW
Input Power Cooling 2.300 kW
EER Cooling 3.52 W/W
Starting Current 60.0 A
Max. Operating Current Cooling 17.00 A
Moisture Removal 2.50 l/h
Sound Pressure Level*2 Indoor (Cooling) High 50 dB(A)
Middle 47 dB(A)
Low 44 dB(A)
Quiet 41 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 54 dB(A)
Air Flow Rate Indoor (Cooling) High 1380 m³/h
Outdoor (Cooling) High 4200 m³/h
Net Dimensions
Indoor		 Height 340 mm
Width 1150 mm
Depth 280 mm
Net Dimensions
Outdoor		 Height 914 mm
Width 970 mm
Depth 370 mm
Net Weight Indoor 17.0 kg
Outdoor 77.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max Pipe Length (Pre Charge) 30.0 (7.5) m
Max Height Difference 15 m
Operation Range Cooling 21 to 46 °CDB
Refrigerant Type R410A
Charge 2450 g
