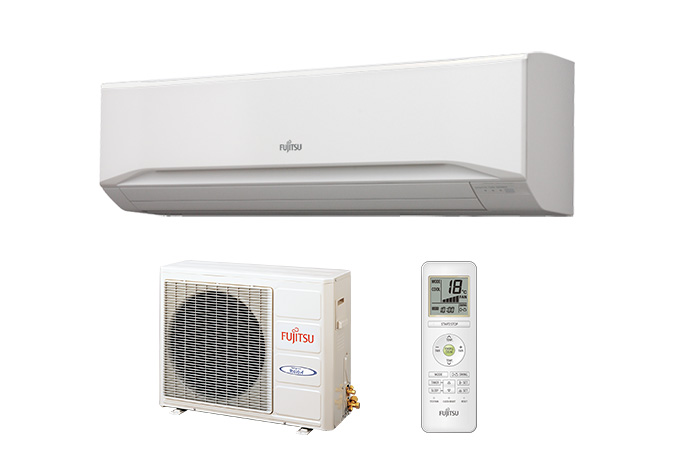

Wall Mounted ASMA24FUTA

Hydraulic unit and Outdoor unit

R410A 10 Years Warranty RANK : 5
Indoor Unit :
ASMA24FUTA
Outdoor Unit :
ASMA24FUTA
Download :
Catalogue

Features

  • Powerful airflow
  • 6 speed control
  • High energy saving
  • Wide operation range

Feature Explanation Icons

Powerful mode : Operation at maximum air flow and compressor speed, and quickly makes the room comfortable. Auto-changeover : The unit automatically switches between heating and cooling modes based on your temperature setting and the room temperature. Double swing automatic : Complex swing action of flaps enables automatically to swing both horizontal and vertical directions. Automatic fan speed : The micro-computer automatically adjusts the airflow effectively to follow the changes of room temperature. Auto restart : In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once power supply is restored. Sleep timer : The micro-computer gradually changes the room temperature automatically to afford a comfortable night's sleep. Program timer : This digital timer allows selection of one of four options : ON, OFF, ON;→OFF or OFF→ON.

Capacity

Cooling  7.18 kW

RANK : 5


Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
Capacity Cooling 24,508 BTU/h
Cooling 7.18 kW
Input Power Cooling 2.02 kW
EER Cooling 3.43 W/W
Cooling 12.90 Btu/hW
Running Current Cooling 9.4 A
Moisture Removal 2.0 I/h
Sound Pressure Level Indoor (Cooling) Super 49 dB(A)
High 46 dB(A)
Middle 43 dB(A)
Low 39 dB(A)
Quiet 35 dB(A)
Outdoor 55 dB(A)
Air Flow Rate Indoor High 1,350 m3/h
Outdoor High 3,070 m3/h
Net Dimensions
Indoor
Height 340 mm
Width 1,150 mm
Depth 280 mm
Net Dimensions
Outdoor
Height 650 mm
Width 830 mm
Depth 320 mm
Net Weight Indoor 16.0 kg
Outdoor 52.0 kg
Connection Pipe Diameter Liquid 6.35 mm
Gas 15.88 mm
Drain Hose Diameter Indoor 13.8 mm
Outdoor 15.8 to 16.7 mm
Max Pipe Length (Pre Charge) 20 (7.5) m
Max Height Difference 8 m
Operation Range Cooling 21 to 46 °CDB
Refrigerant Type R410A
Scroll

Dimensions

Indoor Unit : ASMA24FUTA

Indoor unit
