Multi-split Systems (Air Conditioners) 2-, 3-, and 4-unit Multi-split Type AOAG30LAT4
Features
- Space-saving installation
- Wide range of indoor units with various models
- Flexible installation
Capacity
8.0 kW
9.6 kW
Specification
| Power source | Phase | Single-phase |
|---|---|---|
| Voltage | ~ 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 8.0 kW(3.5 - 10.1 kW) | Heating | 9.6 kW(3.7 - 12.0 kW) |
| EER | Cooling | 3.6 W |
| COP | Heating | 4 W |
| Sound Pressure Level*2 (High) | Cooling | 50 dB(A) |
| Heating | 51 dB(A) | |
| Sound Power Level (High) | Cooling | 68 dB(A) |
| Heating | 70 dB(A) | |
| Net Dimensions | Height | 830 mm |
| Width | 900 mm | |
| Depth | 330 mm | |
| Net Weight | 68 kg | |
| 150 lbs | ||
| Connection Pipe Diameter | Liquid |
Φ6.35×4 mm
*(Φ6.53×3, Φ9.57) mm |
| Gas |
Φ9.52×2, Φ12.7×2 mm
*(Φ9.52×3,Φ12.7) mm *(Φ9.52×2,Φ12.7,Φ15.88) mm |
|
| Max Pipe Length | Total | 70 m |
| Each | 25 m | |
| Max Height Difference | Between Outdoor Unit and Each Indoor Unit | 15 m |
| Between Indoor Units | 10 m | |
| Operation Range | Cooling | 0 to 46 °CDB |
| Heating | -10 to 24 °CDB | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2,088 | |
| Charge | 3,300 g | |
Scroll
- •
- Connect to connection valve by the adapter.
Dimensions

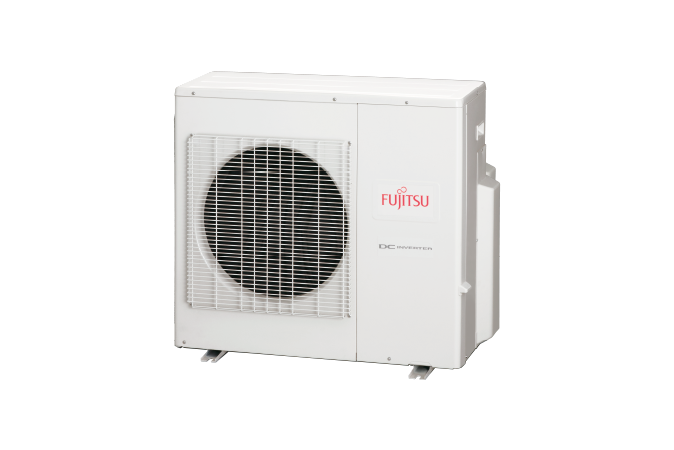

Outdoor Unit : AOAG30LAT4
