Enhancing industry’s top class energy-saving performance and work flexibility New release of modular type multi air conditioning system for buildings
|
|
 |
|
 |
Our company will release modular-type multi air conditioning system for buildings ”AIRSTAGE” V-III series (8/10/12/14/16 HP) realizing industry’s top class energy-saving performance and enhancing work flexibility for Chinese market from the end of September.
The market of multi air conditioning system for buildings in China is growing steadily, but as the regulations of energy conservation are more and more tightened, the high energy saving performance is required for the commercial use air conditioning system which accounts for large part of power consumption at stores and offices. Also, in case of commercial property, the good installation efficiency dealing with the buildings of various structures is an important factor.
The new series is the commercial use air conditioning system having maximum 48HP (135kW) capacity combining maximum 3 outdoor units and realized industry’s top class energy-saving performance IPLV*1 6.85 in 8HP model and acquired Energy Label Class 1*2 in China by our original energy-saving technologies such as ”Large capacity DC rotary compressor” and ”Sine wave DC inverter control” in addition to ”High density multi-path heat exchanger”.
In the installation aspect, the installation efficiency which was well accepted in the conventional models was further enhanced by adopting the ”corner cut air intake structure” of outdoor unit enabling the installation even in the narrow space and making the pipe length of indoor and outdoor units to the maximum 165m to correspond to various building structures.
The sales of ”AIRSTAGE” V-III series will be promoted to Europe and other markets as well after November.
We will develop the products complying with the energy-saving policy of various countries of the world aiming to further expand the air conditioner business including multi air conditioning system for buildings.
”AIRSTAGE” V-III series outdoor units

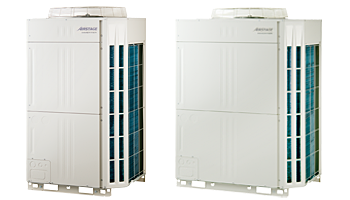

(left) 8/10/12HP (right) 14/16HP
Main features
- High efficiency operation realizing Energy Label Class 1*2
- Realizing high efficient operation by ”Round-corner type high density multi-path heat exchanger” and ”Upper and lower individual refrigerant control”
- ”Distributed operation control” utilizing multiple heat exchangers
- Realizing high efficiency of refrigerant circuit by adopting large capacity DC twin rotary compressor
- Highly flexible installation which was well accepted in conventional models
- Controller making detailed controls and central control instrument
- ”Touch panel type remote controller” enhancing operation easiness significantly by newly adopting energy-saving function
- Lineup of individual remote controllers
- Diverse central control systems adapting to control scale
- Product lineup corresponding to customers’ request
- Outdoor unit (8HP – 48HP: 29 combinations)
- Indoor unit (2.2kW – 25.0kW: 71 models)
1. High efficiency operation realizing Energy Label Class 1*1
”AIRSTAGE” V-III series achieved Energy Label Class 1*1 and realized high efficient operation by our various original energy-saving technologies.
i） Realizing high efficient operation by ”Round-corner type high density multi-path heat exchanger” and ”Upper and lower individual refrigerant control”

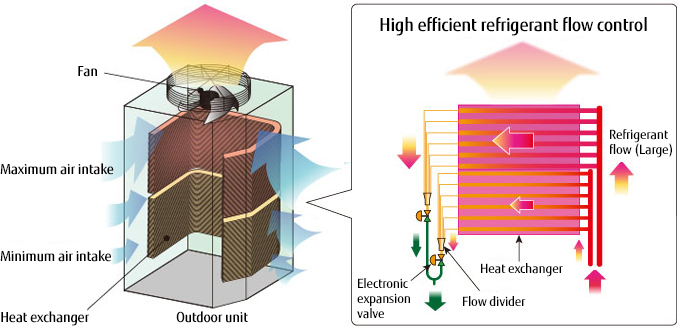

In addition to the efficient ”Round-corner type high density multi-path heat exchanger” (thin copper pile of Φ7mm, round-corner shape), our original operation control function is adopted to divide the heat exchanger to upper and lower parts and properly control the refrigerant volume flown into each part according to the air volume to be taken into the heat exchanger, by which the maximum performance of the heat exchanger is secured and the high efficient operation is realized.
ii） ”Distributed operation control” fully utilizing multiple heat exchangers

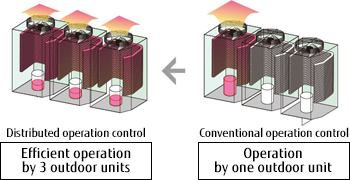

The heat exchange efficiency is substantially enhanced by ”Distributed operation control” function making full use of the heat exchanger of each outdoor unit according to the required capacity from indoor unit.
The compressor can maintain the most efficient and stable operation without operating by the maximum load. Also, the reliability of the equipment is enhanced as the operation is not concentrated on one outdoor unit.
iii） Realizing high efficiency of refrigerant circuit by adopting large capacity (16HP) DC twin rotary compressor
The operation is integrated into one compressor by adopting DC inverter control of sine wave driving system with less rotation loss and the newly developed 16HP twin rotary compressor.
The capacity loss is reduced compared with the conventional way of combining two compressors and the efficiency is enhanced.
2. Highly flexible installation which was well accepted in conventional models
”AIRSTAGE” V-III series adopts ”Corner cut air intake structure” enabling installation even in the narrow space and enhancing the installation efficiency which is well accepted in the conventional models and corresponding to various building structure such as long piping and high external static pressure.
i） Outdoor unit with installation space saving design adopting ”Corner cut air intake structure”
Outdoor unit adopts ”Corner cut air intake structure” securing ample air intake volume and enabling space-saving designing.
Corner cut air intake structure : Top view (left) Airflow when installing adjacently (right)
ii） Enhancing work flexibility of installation by long piping design up to maximum piping length 165m and maximum total piping length 1,000m

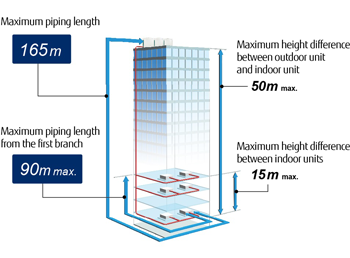

Installation for various building structure is possible by long piping design with maximum piping length 165m and maximum total piping length 1,000m and also piping length 90m from the first branch to the remotest indoor unit and the maximum height difference 15m between indoor units.
iii） Easy installation in each floor and balcony of high-rise building by outdoor unit of external static pressure 82Pa
External static pressure up to 82Pa can be dealt with by adopting large aperture propeller fan and 3 phase DC motor, by which the installation in each floor and balcony of high-rise building has become easy
3. Controller making detailed controls and central control instrument
i） ”Touch panel type remote controller” enhancing operation easiness significantly by newly adopting energy-saving function
- Enhancing operation easiness significantly by adopting touch panel
The screen can be switched by one touch and the required operation can be made easily. - Further strengthening the energy-saving function
Such functions are added as function to prevent excessive cooling or heating by suppressing the range of indoor temperature to be set beforehand and function to eliminate the useless operation by the ”timer to prevent failure to turn off”. As for the ”timer to prevent failure to turn off”, the time to operate the timer can be set. As one example, such detailed control is possible as ”operation continues during regular work hours and operation turns off automatically after certain time from the start of operation during over time work hours. - Display by various languages
Display can be made by 7 languages of English, Chinese, French, German, Spanish, Polish and Russian
Touch panel type remote controller
ii） Lineup of individual remote controllers
Wireless remote controller
Wired remote controller
Simple wired remote controller
iii） Diverse central control systems adapting to control scale
Central control systems
Controlling 64 indoor units
Group remote controller
Controlling 100 indoor units
Central remote controller
Controlling 400 indoor units
Touch panel type controller
Controlling 1,600 indoor units
System controller
(Software)
4. Product lineup corresponding to customers’ request
The lineup of outdoor units was developed for 8HP models up to 48HP in 2HP increments. The selection is available from variation of total 29 models.
Also, total 71 models of 21 types of indoor units from 2.2kW to 28.0kW are prepared.
i） Outdoor unit (8HP – 48HP: 29 combinations)
| Capacity range | 8 HP |
10 HP |
12 HP |
14 HP |
16 HP |
20 HP |
22 HP |
24 HP |
26 HP |
28 HP |
30 HP |
32 HP |
34 HP |
36 HP |
38 HP |
40 HP |
42 HP |
44 HP |
46 HP |
48 HP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Combination by Capacity |  |
|
|
|
|
|
* |
* |
|
* |
|
|
* |
* |
|
* |
* |
* |
|
|
* 2 types of combination is possible depending on capacity
ii） Indoor unit (2.2kW – 28.0kW: 71 models)
| 2.2 kW |
2.5 kW |
2.8 kW |
3.2 kW |
3.6 kW |
4.0 kW |
4.5 kW |
5.0 kW |
5.6 kW |
6.3 kW |
7.1 kW |
8.0 kW |
9.0 kW |
10.0 kW |
11.2 kW |
12.5 kW |
14.0 kW |
18.0 kW |
22.4 kW |
25.0 kW |
28.0 kW |
|
| Small-size cassette | |
|
|
|
|
|
|
|
|||||||||||||
| Thick-type cassette | |
|
|
|
|
|
|
|
|
||||||||||||
| Thin-type cassette | |
|
|
|
|||||||||||||||||
| Slim ducted | |
|
|
|
|
|
|
|
|
|
|
||||||||||
| Small-size ducted | |
|
|
|
|
|
|
|
|
||||||||||||
| Low static pressure duct | |
|
|
|
|
|
|||||||||||||||
| Mid static pressure duct | |
|
|
|
|
||||||||||||||||
| High static pressure duct | |
|
|
||||||||||||||||||
| Extra large-size ducted | |
|
|||||||||||||||||||
| Small-size wall-mounted（*3） | |
|
|
|
|||||||||||||||||
| Large-size wall-mounted | |
|
|
||||||||||||||||||
| Outside air processor | |
|
|
Main specifications/Time of release/Production quantity
Main specifications of outdoor units
| Model name | AJQ224LALBH | AJQ280LALBH | AJQ335LALBH |
|---|---|---|---|
| Power supply | 3 phase 380V 50H | ||
| Cooling capacity | 22.4kW | 28.0kW | 33.5kW |
| Heating capacity | 25.0kW | 31.5kW | 37.5kW |
| Energy consumption efficiency（IPLV） | 6.85 | 6.65 | 6.50 |
| Dimension （H × W × D） | 1,690 × 930 × 765mm | ||
| Weight | 252kg | ||
| Release time | End Sept., 2014 | ||
| Model name | AJQ400LALBH | AJQ450LALBH |
|---|---|---|
| Power supply | 3 phase 380V 50H | |
| Cooling capacity | 40.0kW | 45.0kW |
| Heating capacity | 45.0kW | 50.0kW |
| Energy consumption efficiency（IPLV） | 6.50 | 6.30 |
| Dimension （H × W × D） | 1,690 ×1,240× 765mm | |
| Weight | 275kg | |
| Release time | End Sept., 2014 | |
Production quantity (first year):
1,000 sets (outdoor units including all models)
Note
- *1 IPLV :
- Index to show energy efficiency in China (IPLV: Integrated Part Load Value)
- *2 Energy Label Class 1 :
- Labelling system for air conditioner in China. Ranking from Class 1 to Class 5. Class 1 is highest.
- *3 Small-size wall-mounted :
- Two types of small-size models, normal and low-noise, are available.
* ”AIRSTAGE” is the registered trade mark of Fujitsu General Limited.
