Compact Wired Remote Controller UTY-RCRYZ1


Download :


  • Simple design that matches stylish interiors
  • The body of the controller, which is easy to install, is designed to conform to the European standard junction box.
  • Can be operated both by wireless and wired remote controller.
  • Nonpolar 2-core type

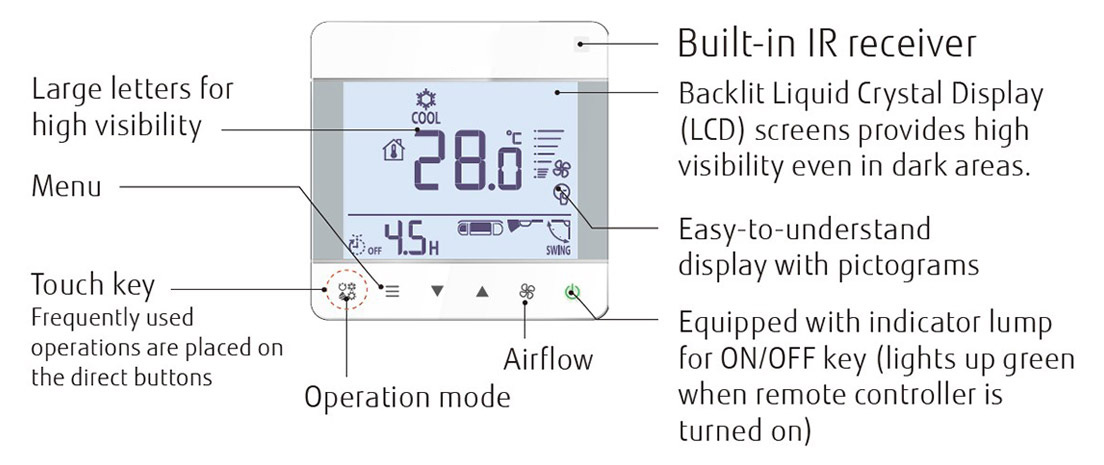

Large screen and simple display

  • Large screen but compact size
  • Large, easy-to-read letters are used.
  • The controls are simple and easy to understand.

System overview

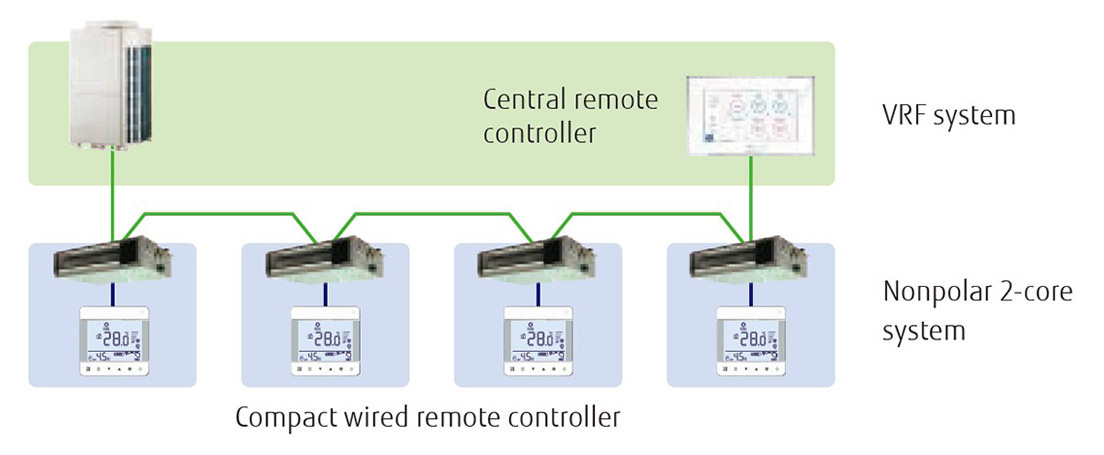

VRF connection

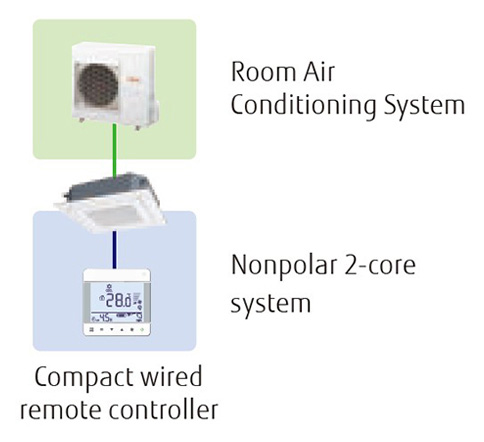

RAC connection


Model Name UTY-RCRYZ1
Power Supply DC 12 V
Net Dimensions Height 86 mm
Width 86 mm
Depth 44 mm
Net Weight 135 g
