Wireless Remote Controller UTY-LNHY
- Max. number of controllable units :
- 16 indoor units
- Selectable :
- 4-setting daily timer
- Download :
-
Catalogues
Features
Simple and versatile operations with a choice of 4 different types of timers
- Controls up to 16 indoor units.
Built-in timer
4 timer programs: ON/OFF/Program/Sleep
Program timer: Sets ON/OFF time once for every 24 hours.
Sleep timer: Adjusts the set temperature automatically while the sleep timer is on.
Easy installation and operation
Different codes can be assigned to up to 4 indoor units to prevent a mix-up.
Wide and precise transmitting range
IR Receiver Units
UTB-YWC
This IR Receiver Unit allows a Wireless Remote Controller to control a Duct type indoor unit*.
- *
- Large Airflow Duct types do not work with this IR Receiver Unit.

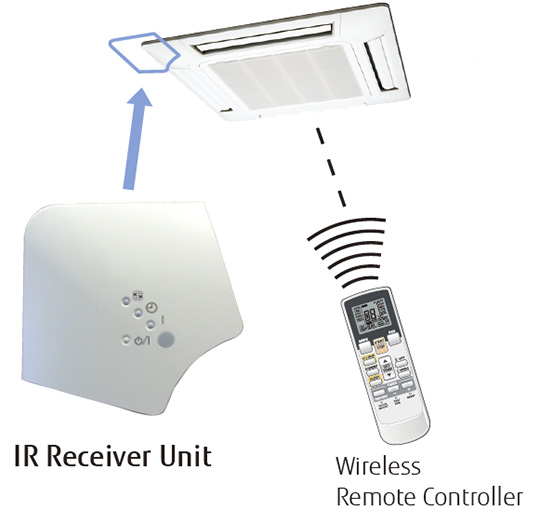

UTY-LRHYB1
This IR Receiver Unit allows a Wireless Remote Controller to control a Cassette type indoor unit.
Specifications
| Model Name | UTY-LNHY | |
|---|---|---|
| Net Dimensions | Height | 170 mm |
| Width | 56 mm | |
| Depth | 19 mm | |
| Net Weight | 85 g | |
| Battery | 1.5 V (R03/LR03/AAA) × 2 | |
Scroll
Specifications
| Model Name | UTB-YWC | |
|---|---|---|
| Net Dimensions | Height | 145 mm |
| Width | 90 mm | |
| Depth | 30 mm | |
| Net Weight | 150 g | |
| Power Supply | 5 V DC | |
Scroll
Specifications
| Model Name | UTY-LRHYB1 | |
|---|---|---|
| Net Dimensions | Height | 193.9 mm |
| Width | 193.9 mm | |
| Depth | 31.2 mm | |
| Net Weight | 140 g | |
| Power Supply | 5 V DC | |
