Wall Mount iCool ASMG24CPTB

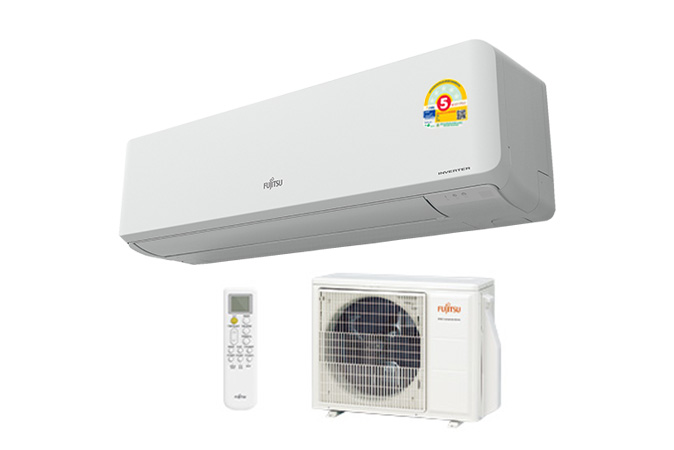

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty RANK
Indoor Unit :
ASMG24CPTB
Outdoor Unit :
AOMG24CPTB
Download :
Catalog

Features

  • High Temperature operation at 52°C
  • PM2.5 filter the newly adopted
  • Anticorrosion Heat Exchanger

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Filter sign: Indicates when the filter should be cleaned. Vertical swing louver: The louver automatically swings up and down. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Automatic fan speed: Microprocessor automatically adjusts the fan speed and airflow according to changes in room temperature. Sleep timer: Gradually changes the room temperature to maintain a comfortable sleeping environment. PM 2.5 filter: Equipped with a high-quality membrane filter designed to capture minuscule particulates. Cooling operation at 52°C: High cooling capacity is maintained even at an outdoor temperature of 52℃.

Capacity

Cooling   6.5 kW

RANK 5


Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
EGAT Capacity Cooling 22200 (5500 - 23300) BTU/h
SEER 17.51 BTU/h
Rank 5★
Capacity Cooling 6.5 (1.625 - 6.825) kW
Input Power Cooling 1.890 kW
EER Cooling 3.44 W/W
Starting Current 9.0 A
Max. Operating Current Cooling 10.00 A
Moisture Removal 2.30 l/h
Sound Pressure Level Indoor (Cooling) High 49 dB(A)
Middle 44 dB(A)
Low 38 dB(A)
Quiet 29 dB(A)
Sound Pressure Level Outdoor (Cooling) High 53 dB(A)
Air Flow Rate Indoor (Cooling) High 1060 m³/h
Outdoor (Cooling) High 2885 m³/h
Net Dimensions
Indoor
Height 280 mm
Width 980 mm
Depth 240 mm
Net Dimensions
Outdoor
Height 632 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 12.5 kg
Outdoor 35.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Drain Hose Diameter φ13.8(ID) φ15 to φ16.8(O.D.) mm
Max Pipe Length (Pre Charge) 20 (10.0) m
Max Height Difference 15 m
Operation Range Cooling 18 to 52 °CDB
Refrigerant Type R32
Charge 1000 g
