Wall Mount iCool ASMG18CPTA

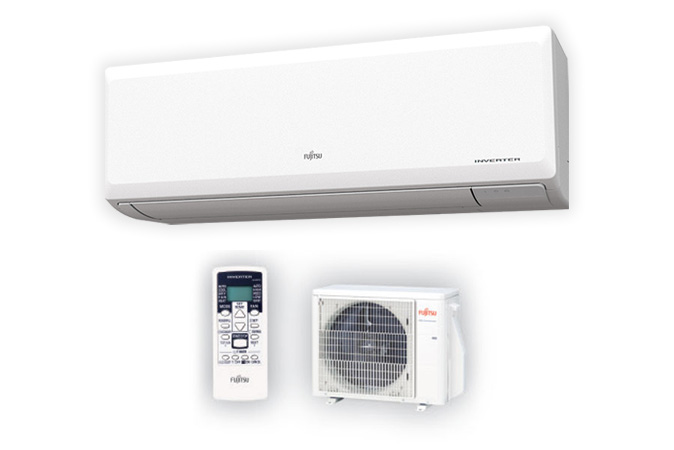

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty
Indoor Unit :
ASMG18CPTA
Outdoor Unit :
AOMG18CPTA
Download :
Catalogues

Features

  • High Temperature operation at 52°C
  • PM2.5 filter the newly adopted
  • Anticorrosion Heat Exchanger

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Filter sign: Indicates the filter cleaning period by blinking. Vertical swing louver: The louver automatically swings up and down. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. PM 2.5 filter: Equipped with a high-quality membrane filter designed to capture minuscule particulates. Cooling operation at 52°C: High cooling capacity is maintained even at an outdoor temperature of 52℃.

Capacity

Cooling   5.0 kW

RANK 5


Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
Capacity Cooling 5.0 (1.3 - 5.4) kW
Input Power Cooling 1.720 kW
EER Cooling 2.91 W/W
Starting Current 8.0 A
Max. Operating Current Cooling 9.50 A
Moisture Removal 1.90 l/h
Sound Pressure Level*2 Indoor (Cooling) High 49 dB(A)
Middle 46 dB(A)
Low 41 dB(A)
Quiet 28 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 51 dB(A)
Air Flow Rate Indoor (Cooling) High 940 m³/h
Outdoor (Cooling) High 1660 m³/h
Net Dimensions
Indoor
Height 270 mm
Width 834 mm
Depth 239 mm
Net Dimensions
Outdoor
Height 541 mm
Width 663 mm
Depth 290 mm
Net Weight Indoor 11.0 kg
Outdoor 27.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max Pipe Length (Pre Charge) 20.0 (10.0) m
Max Height Difference 15 m
Operation Range Cooling 18 to 52 °CDB
Refrigerant Type R32
Charge 700 g
