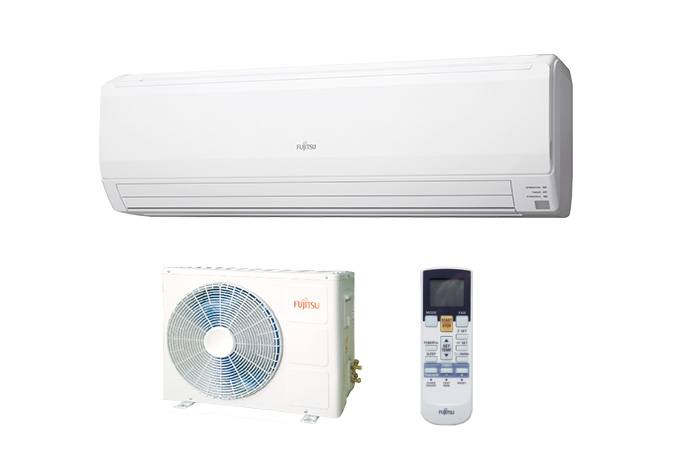

Wall Mounted ASMA13BETA

ASMA13BETA

R32 10 Years Warranty
Indoor Unit :
ASMA13BETA
Outdoor Unit :
AOMA13BETA
Download :
Catalogues

Features

  • High efficient compact design
  • More Comfort Airflow
  • Operation range up to 46°C
  • More Convenient Timer
  • Adopting new refrigerant R32

Feature Icons

Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Capacity

Cooling   4.0 kW

Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
Capacity Cooling 4.0 kW
Input Power Cooling 1.120 kW
EER Cooling 3.57 W/W
Starting Current 29.0 A
Max. Operating Current Cooling 7.50 A
Moisture Removal 1.10 l/h
Sound Pressure Level*2 Indoor (Cooling) High 40 dB(A)
Middle 38 dB(A)
Low 34 dB(A)
Quiet 29 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 51 dB(A)
Air Flow Rate Indoor (Cooling) High 920 m³/h
Outdoor (Cooling) High 1800 m³/h
Net Dimensions
Indoor		 Height 320 mm
Width 998 mm
Depth 238 mm
Net Dimensions
Outdoor		 Height 540 mm
Width 680 mm
Depth 252 mm
Net Weight Indoor 13.5 kg
Outdoor 27.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ12(I.D.), φ16(O.D.) mm
Max Pipe Length (Pre Charge) 15.0 (7.5) m
Max Height Difference 5 m
Operation Range Cooling 21 to 46 °CDB
Refrigerant Type R32
Charge 650 g
