Wall Mount GENERAL Ohayo (General Brand） ASGH12CLTA-T

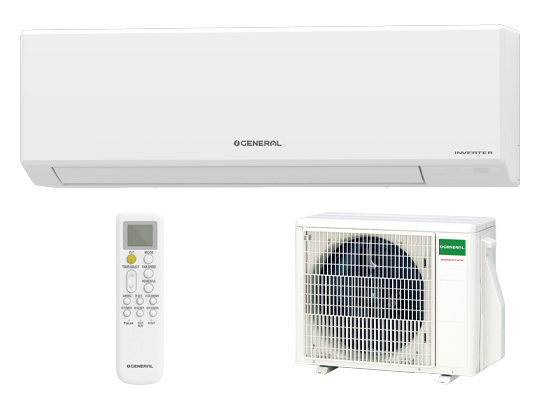

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty
Indoor Unit :
ASGH12CLTA-T
Outdoor Unit :
AOGH12CLTA-T
Download :
Catalogues

Features

  • High Temperature Operation at 52°C
  • Economy Mode
  • Powerful Cooling
  • Program Timer:ON, OFF, ON>OFF, or OFF>ON
  • Anti-corrosion coating
  • Silver Ion Filter
  • Blue fin

Feature Icons

Cooling operation at 52°C: High cooling capacity is maintained even at an outdoor temperature of 52℃. Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. UP/DOWN swing louver: The vertical louver automatically swings up and down. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Filter sign: Indicates the filter cleaning period by blinking. Silver Ion Filter Blue fin

Capacity

Cooling   3.6 kW

Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
Capacity Cooling 3.6 (0.9 - 3.8) kW
Input Power Cooling 1.150 kW
EER Cooling 3.13 W/W
Starting Current 5.4 A
Max. Operating Current Cooling 6.70 A
Moisture Removal 1.50 l/h
Sound Pressure Level*2 Indoor (Cooling) High 42 dB(A)
Middle 36 dB(A)
Low 29 dB(A)
Quiet 21 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 49 dB(A)
Air Flow Rate Indoor (Cooling) High 600 m³/h
Outdoor (Cooling) High 1680 m³/h
Net Dimensions
Indoor		 Height 250 mm
Width 770 mm
Depth 218 mm
Net Dimensions
Outdoor		 Height 541 mm
Width 663 mm
Depth 290 mm
Net Weight Indoor 7.5 kg
Outdoor 20.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max Pipe Length (Pre Charge) 20.0 (10.0) m
Max Height Difference 15 m
Operation Range Cooling 18 to 52 °CDB
Refrigerant Type R32
Charge 450 g
