Floor/Ceiling ABMG24LVTA

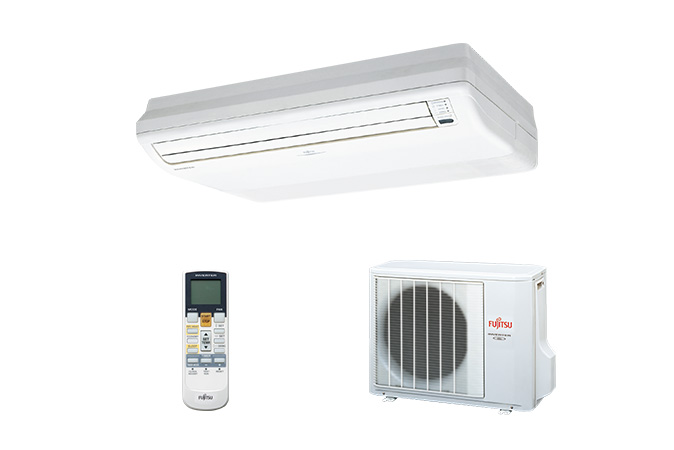

Indoor unit and Outdoor unit

รุ่น DC ทั้งหมด 10 Years Warranty RANK : 5
Indoor Unit :
ABMG24LVTA
Outdoor Unit :
AOMG24LBTA
Download :
Catalogue

Features

  • Flexible installation
  • Double auto swing
  • Easy installation
  • Low ambient operation

Feature Explanation Icons

Double swing automatic : Complex swing action of flaps enables automatically to swing both horizontal and vertical directions. Automatic fan speed : The micro-computer automatically adjusts the airflow effectively to follow the changes of room temperature. Auto restart : In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once power supply is restored. Auto-changeover : The unit automatically switches between heating and cooling modes based on your temperature setting and the room temperature. 10°C HEAT operation : The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied. Economy mode : Thermostat setting automatically changes according to the temperature to avoid unnecessary cooling and heating. Sleep timer : The micro-computer gradually changes the room temperature automatically to afford a comfortable night's sleep. Program timer : This digital timer allows selection of one of four options : ON, OFF, ON;→OFF or OFF→ON. Filter sign : Indicates the filter cleaning period by lamp.

Capacity

Cooling  7.1 kW
Heating  8.0 kW


Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
Capacity Cooling 24,000 BTU/h (9,900 - 27,300) BTU/h
Heating 27,300 BTU/h (7,500 - 31,000) BTU/h
Cooling 7.1 kW(2.9 - 8.0) kW
Heating 8.0 kW (2.2 - 9.1) kW
Input Power Cooling 2.21 kW
Heating 2.21 kW
COP Heating 3.61 W/W
SEER Cooling 15.39 W/W
Energy Efficiency Class Cooling 5
Running Current Cooling 10.1 A
Heating 10.1 A
Moisture Removal 2.7 I/h
Sound Pressure Level Indoor (Cooling) High 48 dB(A)
Middle 44 dB(A)
Low 40 dB(A)
Quiet 35 dB(A)
Outdoor 53 dB(A)
Air Flow Rate Indoor High 1000 m3/h
Outdoor High 3600 m3/h
Net Dimensions
Indoor
Height 199 mm
Width 990 mm
Depth 655 mm
Net Dimensions
Outdoor
Height 830 mm
Width 900 mm
Depth 330 mm
Net Weight Indoor 27 kg
Outdoor 60 kg
Connection Pipe Diameter Liquid 6.35 mm
Gas 15.88 mm
Drain Hose Diameter Indoor 22.0 mm
Outdoor 25.6 mm
Max Pipe Length (Pre Charge) 30 (20) m
Max Height Difference 30 m
Operation Range Cooling -10 to 46 °CDB
Heating -15 to 24 °CDB
Refrigerant Type R410A
Scroll

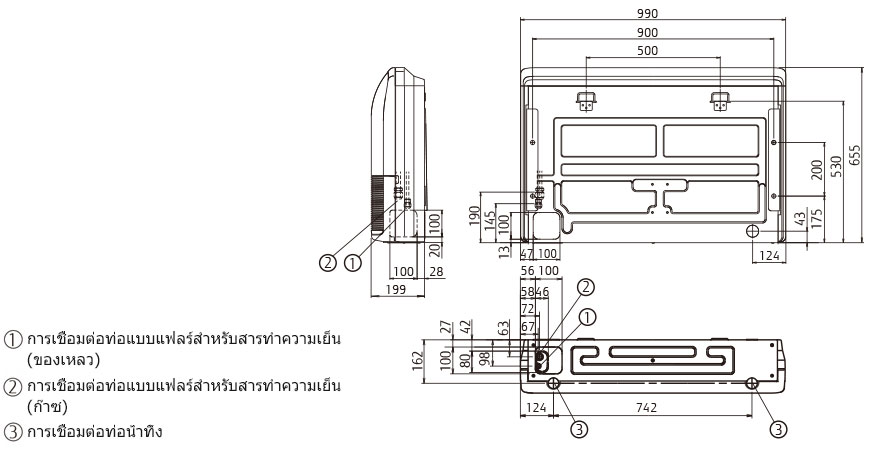

Dimensions

Indoor Unit : ABMG24LVTA

Indoor unit

Optional Parts

Wired Remote Controller
UTY-RNNYM
Simple Remote Controller
UTY-RSNYM
External Connect Kit
UTY-XWZX
