Group Remote Controller UTY-CGGG

Controller

Max. number of controllable systems :
8 remote controller groups
Max. number of controllable systems :
64 Group Remote Controllers in a VRF network system
Download :
Catalogues

Features

Group control of indoor units with ease of operation

  • Up to 8 remote controller groups can be controlled with a single Group Remote Controller.
  • Up to 64 Group Remote Controllers can be connected in a VRF network system.
  • A Network Converter is required to connect Group Remote Controllers to a VRF network system. (A Network Converter can handle up to 4 Group Remote Controllers.)
  • 3-wire type

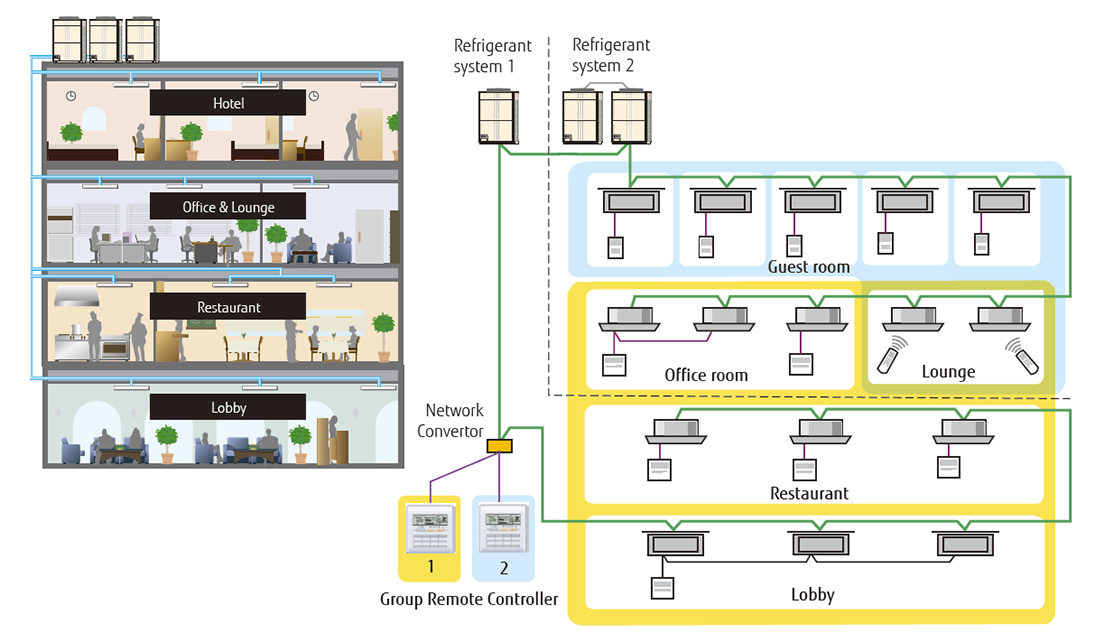

Controls up to 8 remote controller groups

A single Group Remote Controller controls and monitors up to 8 remote controller groups.

Group Remote Controller 1:
Controls up to 8 remote controller groups, which include indoor units in an office room, a lounge, a restaurant, and a lobby.
Group Remote Controller 2:
Controls up to 7 remote controller groups, which include indoor units in guest rooms and a lounge.

Compact and versatile

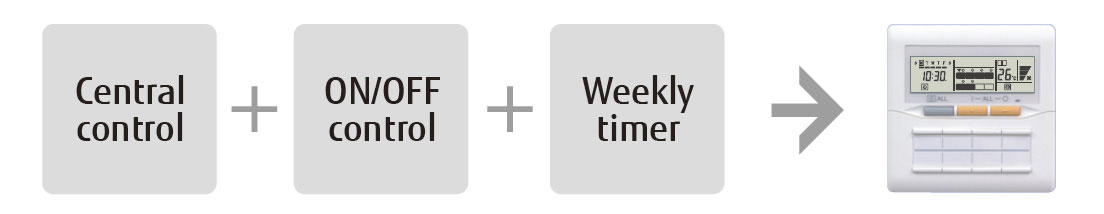

On/Off, operation mode, room temperature, and fan speed can be controlled and monitored individually or centrally.

Built-in weekly timer

A weekly timer comes as a standard function.

Specifications

Model Name UTY-CGGG
Power Supply 12 V DC
Net Dimensions Height 120 mm
Width 120 mm
Depth 18 mm
Net Weight 200 g
Battery 1.5 V (R03/LR03/AAA) × 2
Scroll
12 V DC supplied by an indoor unit
