Halcyon™ SINGLE-ROOM MINI-SPLIT SYSTEMS Wall Mounted RLS3 Series Built-in Wi-Fi Highest SEER 12RLS3Y

Halcyon™

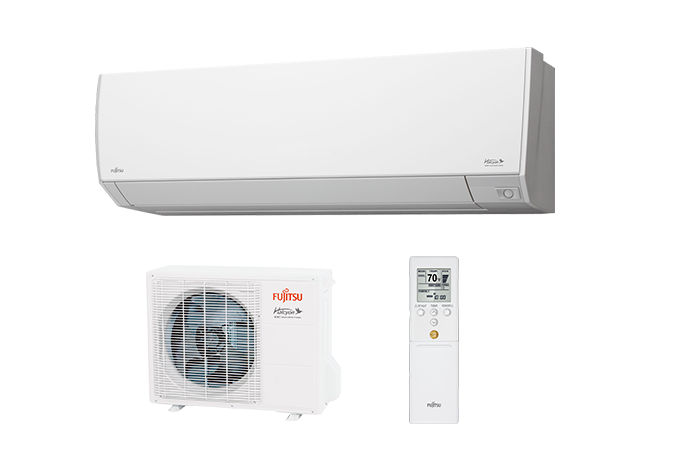

Indoor Unit Systems: ASU12RLS3Y,Outdoor Unit: AOU12RLS3

Indoor Unit:
ASU12RLS3Y
Outdoor Unit:
AOU12RLS3
Downloads:
Manuals
Warranty
Up to 33.0 SEER
  • INVERTER 7 year compressor 5year parts Warranty. Refrigerant R410A ENERGY STAR®

  • Built-in Wi-Fi control
  • Energy Saving Program (ESP)
  • Programmable Remote
  • Powerful Heating
  • World Class Performance
  • Quiet Operation
  • Inverter Technology

Cooling  12,000 BTU/h
Heating  16,000 BTU/h

Specification
Power Source Voltage/Frequency/Phase 208-230/60/1
Capacity Cooling BTU/h 12,000(3,100~13,600)
Heating 16,000(3,100~22,100)
HSPF BTU/hW 14.0
SEER BTU/hW 29.3
EER Cooling/Heating W/W 15.2
Operation Range Cooling °F(°C) 14~115 (-10~46)
Heating -5~75 (-21~24)
Moisture Removal Pt./h(l/h) 2.7 (1.3)
MAX.CRT.BKR A 15
Air Circ. C.F.M. Hi (m³/h) 489 (830)
Medium 400 (680)
Low 341 (580)
Quiet 224 (380)
Noise Level Hi dB(A)
15RLS3
42/41
Medium 37/35
Low 32/31
Quiet 23/23
Outdoor Fan Speed RPM 989/1,082
Outdoor Noise Level dB(A)
Clg/Htg
43/47
Current Cooling A 3.8/9.4
Heating 4.7/11.9
Power Use Cooling kw 0.79/0.99
Heating 1.01/1.94
Fan Speeds Stage 4+Auto
Air Direction Horizontal Automatic
Vertical Automatic
Air Filter Washable
Connection Method Flare
Combined Min.Lgth Ft (m) 10 (3)
Max.Lgth 66 (20)
(pre-charge: 49’)
Max. Vertical Diff. Ft (m) 49 (15)
Conn. Pipe Diameter Indoor Inch Suc.3/8
Outdoor Dis.1/4
Net Weight Indoor lbs.(kg) 31 (14)
Outdoor 84 (38)
Dimensions Height Indoor Inch 11-5/8
mm 295
Outdoor Inch 24-7/16
mm 620
Width Indoor Inch 37
mm 940
Outdoor Inch 31-1/8
mm 790
Depth Indoor Inch 10-5/8
mm 270
Outdoor Inch 11-7/16
mm 290
Refrigerant (Global Warming Potential) R410A
Scroll
Dimensions

Indoor Unit: ASU12RLS3Y

Indoor Units: Dimensions

Outdoor Unit: AOU12RLS3

Outdoor Units: Dimensions
