Heat Pump Modular type V-III TROPICAL Series AJY108LNTCH  [3Phase]

Outdoor unit

Outdoor Unit :
AJY108LNTCH
Download :
Catalogues

Features

  • Excellent energy saving
  • Great design flexibility for placement in any building
  • Easy installation and maintenance
  • Energy-saving technologies for boosting operational efficiency
  • Thorough anti-corrosion treatment
  • Outstanding cooling capacity

Capacity

Cooling   33.5 kW
Heating   37.5 kW


Specification

Rated Capacity Range 12 HP
Indoor unit connectable capacity 16.8 - 43.5 kW
Scroll
Power source Phase 3-phase 3N
Voltage 380-415(50Hz),400(60Hz) V
Frequency 50/60 Hz
Capacity Cooling 33.5 kW
Heating 37.5 kW
Input Power Cooling 8.96 kW
Heating 8.65 kW
EER Cooling 3.74 W/W
COP Heating 4.34 W/W
Air Flow Rate 13000 m³/h
Sound Pressure Level*2 Cooling 57 dB(A)
Heating 60 dB(A)
Max. External Static Pressure 82 Pa
Compressor Motor Output 11.0 kW
Heat exchanger fin Blue fin
Net Dimensions Height 1690 mm
Width 1240 mm
Depth 765 mm
Net Weight 279 kg
Refrigerant Type R410A
Charge 11.8 kg
Connection Pipe Diameter Liquid φ12.7 mm
Gas φ28.58 mm
Total pipe length 700 m
Max. height difference
(Outdoor Unit: Upper/Lower)
50 / 40 m
Operation Range Cooling -15 to 52 °CDB
Heating -20 to 21 °CDB
Scroll
Note:
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating:
Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length:
7.5 m; Height difference between outdoor unit and indoor unit : 0 m.
*1
Minimum connectable indoor unit number is 2.
*2
The noise value is the value when measured in an anechoic room. When measured in the actual installed state,
surrounding noise and reflections are received and the measured value is usually larger than the indicated value.

Dimensions

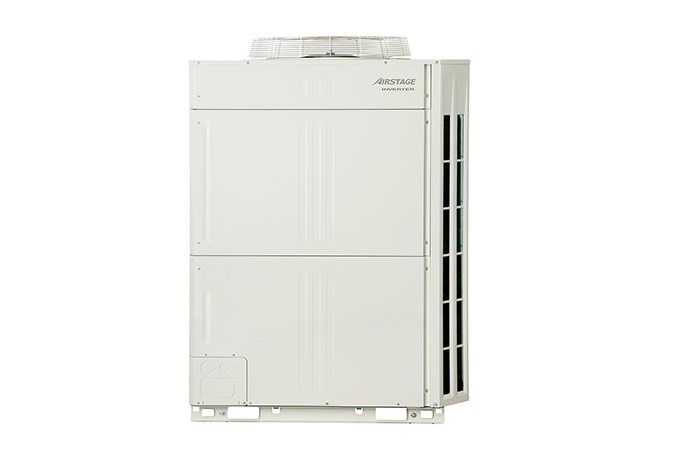

Outdoor Unit : AJY108LNTCH

Outdoor unit
