Wall Mount Fuji Extreme (General Brand) ASGA15BJWA

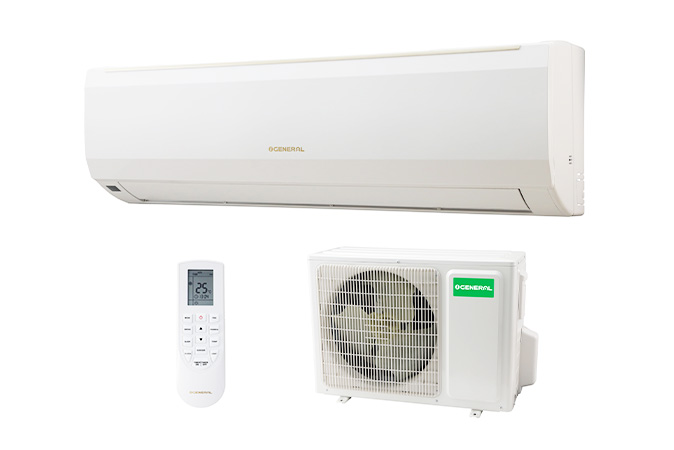

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty
Indoor Unit :
ASGA15BJWA
Outdoor Unit :
AOGA15BJWA
Download :
Catalogues

Features

  • Condenser Copper & Blue Fin
  • Self-Diagnosis
  • Sensor mode

Feature Icons

Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Human sensor (Energy Saving): The air conditioner switches to operate on reduced power when it detects no human movement in the room. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Vertical swing louver: The louver automatically swings up and down. Blue fin Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored.

Capacity

Cooling   4.4 kW


Specification

Power source Phase Single-phase
Voltage 220-240 V
Frequency 50 Hz
Capacity Cooling 4.4 kW
Input Power Cooling 1.183 kW
EER Cooling 3.72 W/W
Max. Operating Current Cooling 8.24 A
Moisture Removal 1.80 l/h
Sound Pressure Level*2 Indoor (Cooling) High 44 dB(A)
Middle 40 dB(A)
Low 36 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 49 dB(A)
Air Flow Rate Indoor (Cooling) High 850 m³/h
Outdoor (Cooling) High 2400 m³/h
Net Dimensions
Indoor
Height 300 mm
Width 970 mm
Depth 224 mm
Net Dimensions
Outdoor
Height 596 mm
Width 899 mm
Depth 378 mm
Net Weight Indoor 13.5 kg
Outdoor 39.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Max Pipe Length (Pre Charge) 25.0 (7.5) m
Max Height Difference 10 m
Operation Range Cooling 18 to 48 °CDB
Refrigerant Type R32
Charge 930 g
