Wall Mount Fuji Extreme (General Brand) ASGA12BJWA

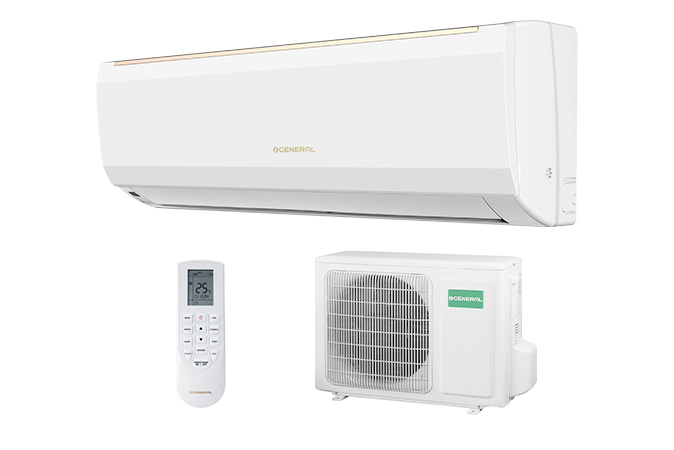

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty RANK
Indoor Unit :
Outdoor Unit :
Download :


  • Condenser Copper & Blue Fin
  • Self-Diagnosis
  • Sensor mode

Feature Icons

Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Human sensor (Energy Saving): The air conditioner switches to operate on reduced power when it detects no human movement in the room. Sleep timer: Gradually changes the room temperature to maintain a comfortable sleeping environment. Vertical swing louver: The louver automatically swings up and down. Blue fin Auto restart: The unit automatically restarts in the previous operation mode when power returns after an outage.


Cooling   3.6 kW


Power source Phase Single-phase
Voltage 220-240 V
Frequency 50 Hz
EGAT Capacity Cooling 12300 BTU/h
SEER 13.5 BTU/h
Rank 5
Capacity Cooling 3.6 kW
Input Power Cooling 0.967 kW
EER Cooling 3.72 W/W
Max. Operating Current Cooling 7.40 A
Moisture Removal 1.40 l/h
Sound Pressure Level*2 Indoor (Cooling) High 38 dB(A)
Middle 35 dB(A)
Low 28 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 48 dB(A)
Air Flow Rate Indoor (Cooling) High 540 m³/h
Outdoor (Cooling) High 1800 m³/h
Net Dimensions
Height 289 mm
Width 845 mm
Depth 209 mm
Net Dimensions
Height 540 mm
Width 848 mm
Depth 320 mm
Net Weight Indoor 11.0 kg
Outdoor 30.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Max Pipe Length (Pre Charge) 20 (7.5) m
Max Height Difference 10 m
Operation Range Cooling 18 to 48 °CDB
Refrigerant Type R32
Charge 640 g
