VRF Systems Control System & Controller

For Individual Control

Wired Remote Controller (Touch Panel )

UTY-RNRGZ2

UTY-RNRGZ5

Easy operation by high-definition large STN-LCD touch panel screen

  • Easy finger touch operation with LCD panel
  • Built-in weekly/Daily timer (ON/OFF, Temp., Mode)
  • Backlight enables easy operation in a darkened room
  • Room temperature display
  • Control up to 16 indoor units
  • Corresponds to 12 different languages(English, Chinese, French, German, Spanish, Russian, Polish, Italian, Greek, Portuguese, Turkish and Dutch)
  • 2-wire type

Wired Remote Controller

UTY-RLRG

UTY-RLRG

  • Various timer setup (ON / OFF / WEEKLY) are possible.
  • The room temperature can be controlled by detecting the temperature accurately with Built-in thermo sensor.
  • When a failure occurs, the error code is displayed.
  • Error history. (Last 16 error codes can be accessed.)
  • 2-wire type

Wired Remote Controller

UTY-RNRG

UTY-RNRG

  • Various timer setup (ON / OFF / WEEKLY) are possible.
  • The room temperature can be controlled by detecting the temperature accurately with Built-in thermo sensor.
  • When a failure occurs, the error code is displayed.
  • Error history. (Last 16 error codes can be accessed.)
  • 2-wire type

Simple Remote Controller

UTY-RSRG

UTY-RSRG

Compact remote controller provides access to basic functions

  • Up to 16 indoor units can be controlled with one remote controller.
  • Suitable for hotels or offices as it is easily operated with no complex functions.
  • Stylish design: Simple design to match the stylish interior.
  • Large LCD screen & simple operation buttons
  • Backlight: White colored backlight on monitor enable easy operation in dark.
  • 2-wire type

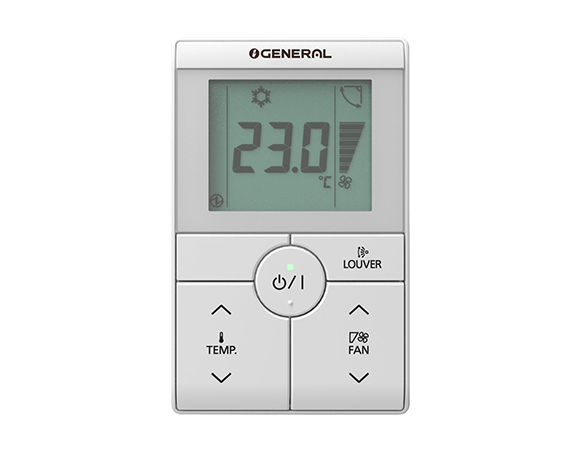

Simple Remote Controller

UTY-RHRG (Without operation mode)

UTY-RHRG (Without operation mode)

Compact remote controller provides access to basic functions

  • Up to 16 indoor units can be controlled with one remote controller.
  • Suitable for hotels or offices as it is easily operated with no complex functions.
  • Stylish design: Simple design to match the stylish interior.
  • Large LCD screen & simple operation buttons
  • Backlight: White colored backlight on monitor enable easy operation in dark.
  • 2-wire type

Wireless Remote Controller

UTY-LNHG

UTY-LNHG

Simple and sophisticated operations with a choice of 4 daily timers

  • A single controller controls up to 16 indoor units.

Wireless Remote Controller

UTY-LNHGU

UTY-LNHGU

Simple and sophisticated operations with a choice of 4 daily timers

  • A single controller controls up to 16 indoor units.

IR Receiver Unit

UTB-YWC

UTB-YWC

Duct type* indoor units can be controlled with Wireless Remote Controller

*
Only Large Airflow Duct can not be connected to IR Receiver Unit.
  • Up to 16 indoor units can be controlled with one remote controller.
  • Suitable for hotels or offices as it is easily operated with no complex functions.

IR Receiver Unit

UTY-LRHGB1

UTY-LRHGB1

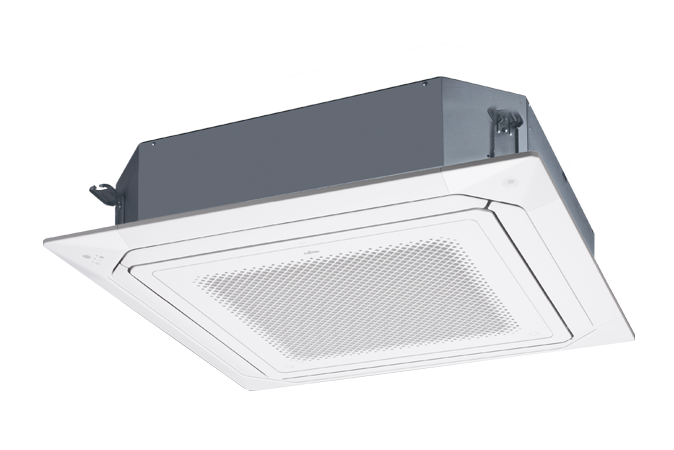

Cassette type indoor unit can be controlled

with Wireless Remote Controller

IR Receiver Unit

UTY-LBHXD

UTY-LBHXD

Cassette type indoor unit can be controlled

with Wireless Remote Controller

Compact Wired Remote Controller

UTY-RCRGZ1

UTY-RCRGZ1

Simple design to match the stylish interior.

Easy to install : Body of controller is designed to fit in European standard junction box.

Can be operated both by wireless and wired remote controller.

2-wire type.

Compact Wired Remote Controller

UTY-RCRGZ1K

UTY-RCRGZ1K

Simple design to match the stylish interior.

Easy to install : Body of controller is designed to fit in European standard junction box.

Can be operated both by wireless and wired remote controller.

2-wire type.

For Centralized Control

Central Remote Controller

UTY-DCGGZ2

UTY-DCGGZ2

The new central remote controller realized an intuitive operation feeling by touch panel operation.

All functions can be accessed from the top screen and the following operations are displayed at pop-up window.

  • Individual control and monitoring of up to 100 indoor units.
  • 7.0inch TFT color screen.
  • Visually intuitive operation.
  • Room temperature display by indoor unit sensor & remote controller sensor.
  • 50 Remote Controller Groups Display & remote controller group rename.
  • Supports 12 languages: Chinese, Dutch, English, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, and Turkish.

System Controller Lite

UTY-ALGXZ1

UTY-ALGXZ1

System Controller Lite has standard functions sufficient for air conditioner management in small and medium scale buildings.

  • Up to a maximum of 1 VRF network system, 400 indoor units, and 100 outdoor units can be controlled.
  • In addition to air conditioning precision control function, a variety of management software is available as an option to give customers a wide range of choice.

System Controller

UTY-APGXZ1

UTY-APGXZ1

System Controller realizes the advanced integrated monitoring & control of VRF network system from small scale buildings to large scale buildings.

  • Up to a maximum of 4 VRF network systems, 1600 indoor units, and 400 outdoor units can be controlled.
  • In addition to air conditioning precision control function, central remote control, electricity charge calculation, schedule management, and energy saving functions are strengthened and building manager and owner needs are met.
