VRF Systems Service & Maintenance

UTY-ASGX

Software

UTY-AMGX

Software

UTY-ASGX Features

Extensive monitoring and analysis functions that make installation and maintenance easier

  • The operation status of the system can be monitored and analyzed to detect any malfunctions.
  • Data on the operation status of the system can be stored on a PC to allow for remote access.
  • Up to 400 indoor units in a single VRF network system can be controlled and monitored for a large building or hotel.
  • This software can be connected to any point of transmission line with a USB adapter (sold separately).
*
Saved data can be displayed offline. Note that the data saved by the following software applications cannot be displayed.
• UTR-YSTB/UTR-YSTC (Service Tool)
• UTR-YMSA (Web Monitoring Tool)

Wiring connection

Wiring connection img

Functions

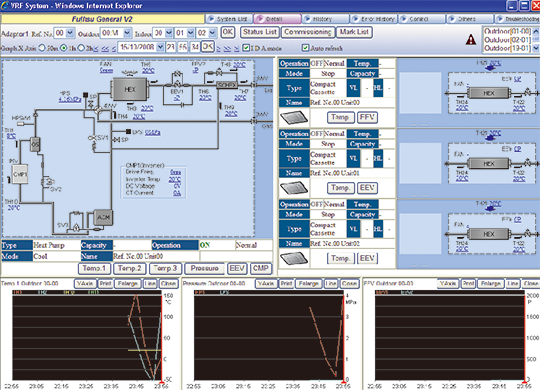

Functions img
  • Equipment Detail (Diagram)
  • Equipment Detail (List)
  • Error History
  • Remote File Download
  • System List
  • Commissioning Tool

Computer requirements

UTY-ASGXZ1

Operating system

  • Microsoft® Windows® 7 Professional (32-bit or 64-bit) SP1
  • Microsoft® Windows® 8.1 Pro (32-bit or 64-bit)
  • Microsoft® Windows® 10 Pro (32-bit or 64-bit)

CPU

1 GHz or higher

Memory

  • 1 GB or more (for Windows Vista®, Windows® 7 [32-bit], Windows® 8.1 [32-bit], and Windows® 10 [32-bit])
  • 2 GB or more (for Windows® 7 [64-bit], Windows® 8.1 [64-bit], and Windows® 10 [64-bit])

HDD

40 GB or more of free space

Screen resolution

1366 x 768 pixels or higher

Interface

  • 2 USB ports*
*
1 USB port required for software protection key connection
1 USB port required for Echelon® U10 USB Network Interface

Software

Internet Explorer® 11 or Microsoft Edge, Adobe® Reader® 9.0 or later

Packing list

White-USB-key (software protection key) × 1
Software protection key to be connected to a USB port on a Service Tool-installed PC. This software runs on a PC with WibuKey or White-USB-key.

UTY-AMGX Features

Software features

  • Troubleshooting is performed by monitoring each air conditioning unit remotely during a periodical system check.
  • An error notification is automatically transmitted to several locations via the Internet*1.
  • Requires either a dedicated Internet connection or public telephone line to operate.
  • The occurrence of an error can be confirmed through an error alert and equipment status information obtained from a remote location.
  • Monitoring data can be downloaded in a remote location. This data can be accessed and displayed offline.
  • The monitoring computer is not required to have any special software installed, but to have a web browser.
*1:
Internet e-mail access required.

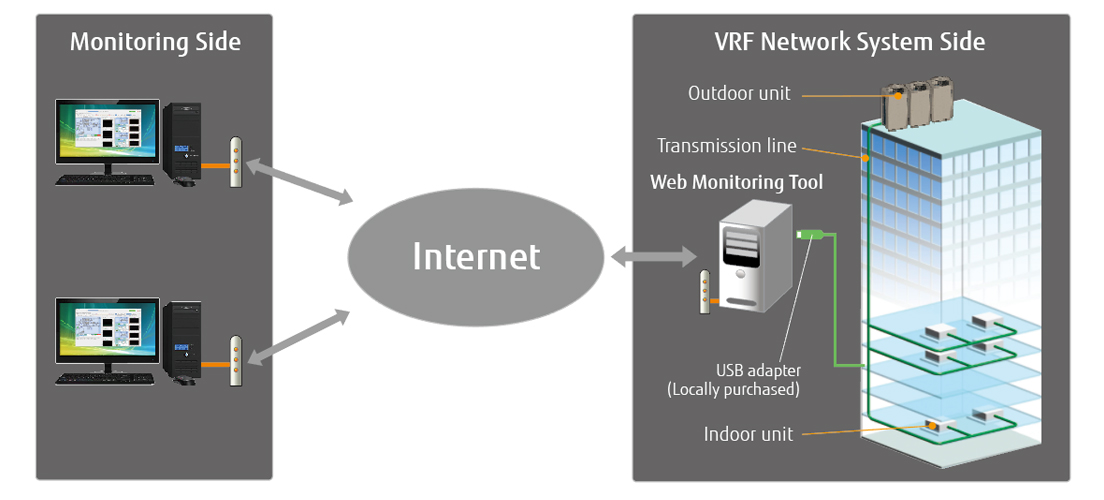

Overview of the Web Monitoring System

Supporting up to 4 VRF network systems

Up to 4 USB adapters can be connected to a PC, enabling the monitoring of up to 1,600 indoor units. Suitable for use in a large-scale building or a hotel.

Computer requirements

UTY-AMGXZ1

Operating system

  • Microsoft® Windows® 7 Professional (32-bit or 64-bit) SP1
  • Microsoft® Windows® 8.1 Pro (32-bit or 64-bit)
  • Microsoft® Windows® 10 Pro (32-bit or 64-bit)

CPU

1 GHz or higher

Memory

  • 1 GB or more (for Windows Vista®, Windows® 7 [32-bit], Windows® 8.1 [32-bit], and Windows® 10 [32-bit])
  • 2 GB or more (for Windows® 7 [64-bit], Windows® 8.1 [64-bit], and Windows® 10 [64-bit])

HDD

40 GB or more of free space

Screen resolution

1366 x 768 pixels or higher

Interface

  • USB ports (one for an Echelon® U10 USB Network Interface and up to 4 ports for software protection keys)
  • Interface for remote connection: Internet using LAN or an Ethernet port

Software

Internet Explorer® 11 or Microsoft Edge, Adobe® Reader® 9.0 or later

Packing list

White-USB-key (software protection key) × 1
Software protection key to be connected to a USB port on a Service Tool-installed PC. This software runs on a PC with WibuKey or White-USB-key.
