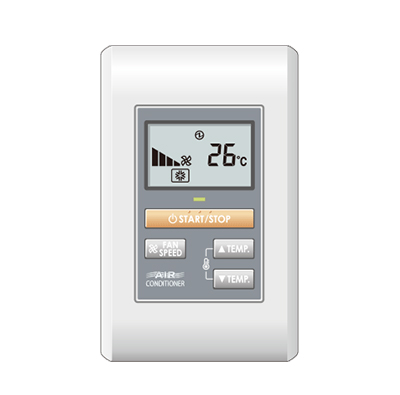

Simple Remote Controller UTY-RHKG
- Max. number of controllable units :
- 16 indoor units
- Download :
Compact remote controller with basic functionality
- Up to 16 indoor units can be controlled with this Simple Remote Controller.
- The ease of operation makes it an ideal choice for use in hotels or offices.
- 3-wire type
- Enables basic control of an indoor unit, such as on/off, fan speed, and room temperature setting.
- A large On/Off button is located in the middle for quick access.
- Works with other individual control units.
- When something goes wrong, an error indicator will appear, and diagnostics can be performed with the remote controller.
- The backlit screen makes it easy to operate in the dark.
- The screen remains backlit for 10 seconds after a control button is pressed and for 5 seconds after the air conditioner is turned off.
Can be mounted to a standard European switch box (Installation dimension: 60 mm) or to a JIS built-in box (Installation dimension: 83.5mm).
- Fan speed
- Room temperature setting
Operation mode cannot be selected with this remote controller. Use other type of remote controller to select operation mode.
|Power Supply||12 V DC|
|Net Dimensions||Height||120 mm|
|Net Weight||90 g|
- 12 V DC supplied by an indoor unit
