Touch Panel Controller UTY-DTGG

Controller

Max. Controllable :
400 indoor units
Max. Controllable :
100 outdoor units
Max. Controllable :
400 groups
Download:
Catalogue

Features

  • Large 7.5-inch TFT color LCD screen
  • Touch screen operation
  • Stylish design to fit nicely into any room environment
  • No additional parts or components required for installation
  • Controls up to 400 indoor units.
  • Icon or list view can be selected in monitoring mode.
  • Supports 7 languages: Chinese, English, French, German, Polish, Russian, and Spanish.

Wide-ranging operation management

Individual control

Flexible grouping

Schedule management

Operation monitoring of indoor units

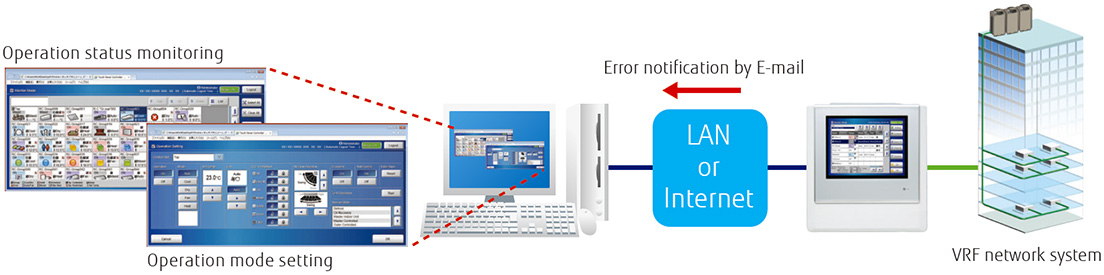

Remote monitoring and operation

  • Air conditioners can be monitored and controlled by PC via LAN.
  • When something goes wrong, an error notice is sent by e-mail for prompt troubleshooting.

Electricity charge apportionment (optional for UTY-PTGXA)

Energy cost can be calculated and allocated to each billing user in proportion to the amount of energy used for air conditioning.

*
An electricity usage meter can be connected to an external input connector of the touch panel controller. In that case, the meter cannot be connected to an outdoor unit at the same time.

Easy installation

  • The touch panel controller can be mounted to the wall.
  • Its flush back side makes it easy to install anywhere on the wall.
  • No additional parts or components required for installation

Specifications

Model Name UTY-DTGG
Power Supply Phase Single phase
Voltage 100 ~ 240 V
Frequency 50/60 Hz
Net Dimensions Height 260 mm
Width 246 mm
Depth 54 mm
Net Weight 2,150 g
Interface Transmission/LAN/USB/EXT IN/EXT OUT/Reset SW
Scroll

Specifications

Model Name UTY-PTGXA
Power Supply 5V DC (USB bus power)
Net Dimensions Height 62 mm
Width 17 mm
Depth 10 mm
Net Weight 9 g
Packing list White-USB-key
