Connecting the BLE adapter to outdoor unit

Turn off the power of the outdoor unit.

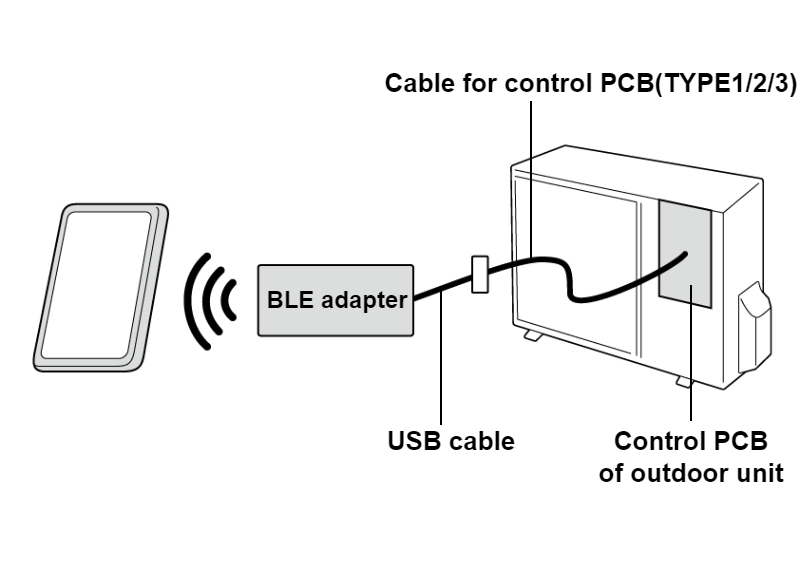

Connect the BLE adapter to the connector labeled "FLASH" on the outdoor unit control PCB.
There are three types of connectors on the control PCB.
Select the required cable from the following three types:

TYPE 1 : PA connector - 6 pin
TYPE 2 : PA connector - 10 pin
TYPE 3 : PA connector - 12 pin

*PCB position differs depending on the models.
When the connection is complete, LED lamp of BLE adapter blinks very quickly. (Twice every 4 seconds)
