AIRSTAGE Service Monitor Tool (hereafter referred to as "this App") and BLE adapter are Service Monitor Tools for Fujitsu General inverter air conditioners, inverter multi air conditioners and heat pump hot-water heating systems (ATW).

The following 6 functions are available:

●Real-time display (list, graph, refrigeration cycle diagram)
Real-time operating data and error data are displayed on a mobile device. Three display methods are available: list, graph, and refrigeration cycle diagram.

●BLE adapter firmware update
BLE adapter firmware updates are performed. A notification will be displayed in the application when an update is required.

●BLE adapter status monitoring
The status of the BLE adapter is monitored. When an error occurs, it is notified with a lamp.（→ for LED lamp）

●History file input and output
History files of operating data compatible with conventional monitoring tools can be input and output. After output, the history file can be sent to a PC or other device.

●Information display immediately before error  (BLE adapter version E164V02L16 or later)
When BLE adapter is connected to the outdoor unit in RECORDING MODE (Recording mode) (→ Mode switching), the operating data from immediately before the error occurred to the time the error occurred is recorded in BLE adapter.

●Power supply from a PC or mobile battery

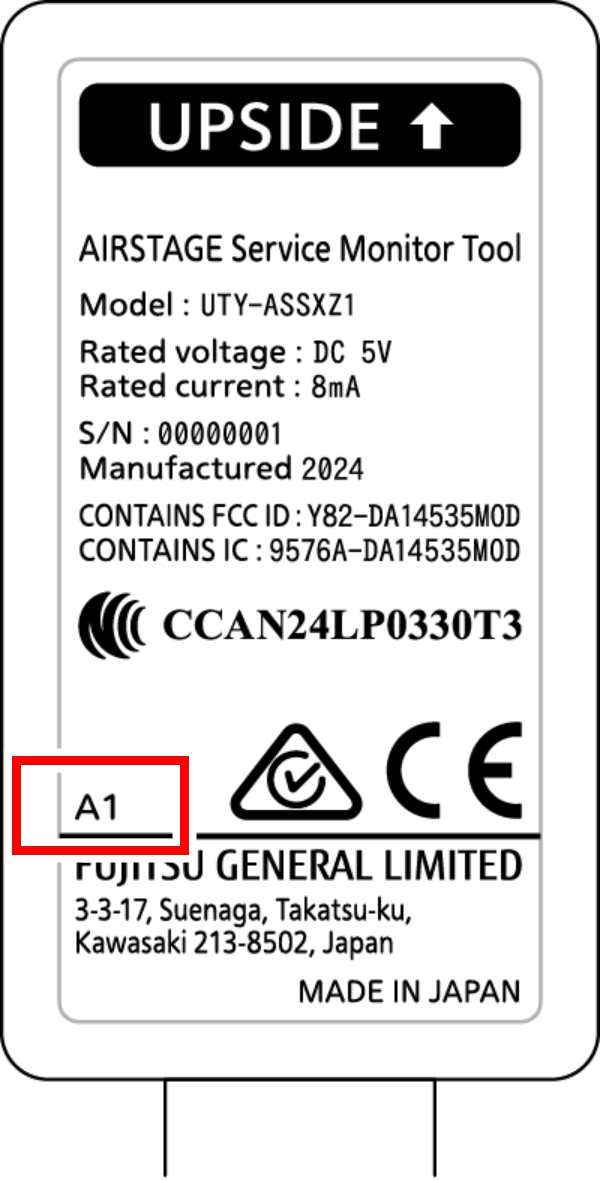

A1 type: The BLE adapter can be connected directly and supplied with power.

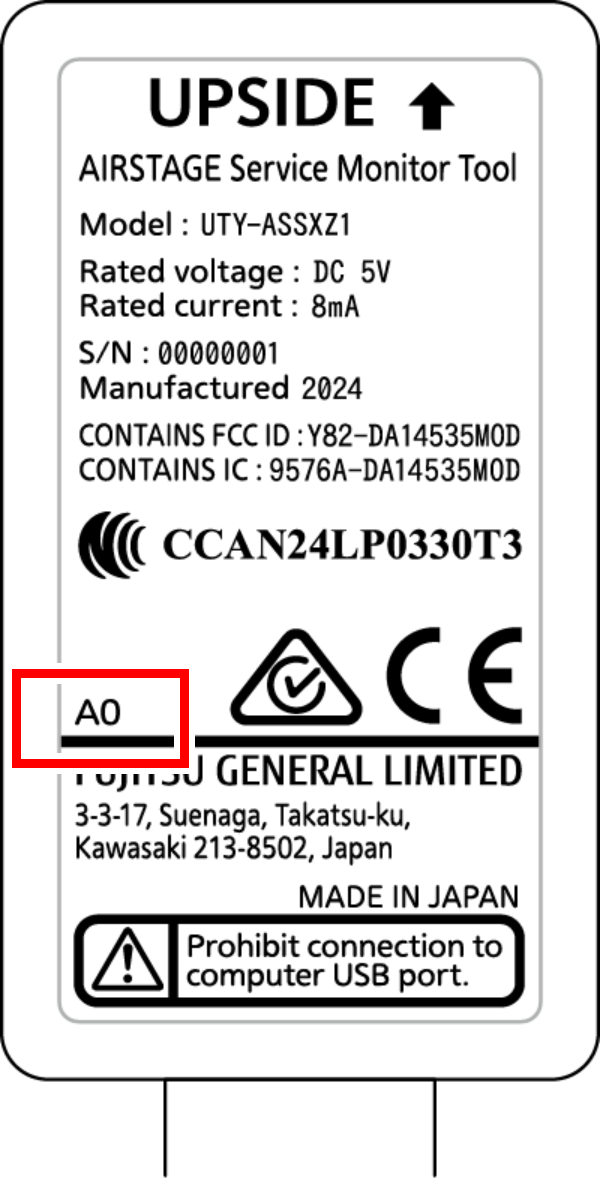

A0 type: Direct connection is not available. (That's because it may damage a PC or mobile battery.)
However, by using the cable for power supply^*  (→SPARE PARTS), it will be possible to connect to a PC or mobile battery.

* The cable for power supply is only for the BLE adapter. It cannot be used for general USB devices.
