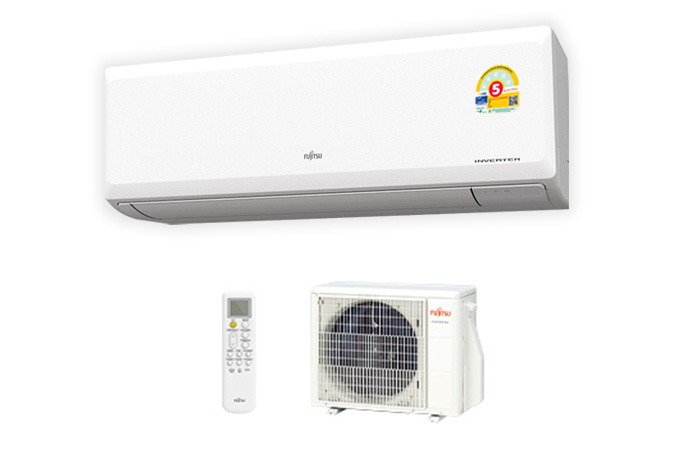

Wall Mount iPlus ASMG12CPTB

Warranty period: 10 years for compressor, 5 years for all parts 0Star
Indoor Unit :
ASMG12CPTB
Outdoor Unit :
AOMG12CPTB
Download :
Catalogues

Features

  • Save more energy
  • Anticorrosion Heat Exchanger
  • Powerful Cooling

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Filter sign: Indicates the filter cleaning period by blinking. Vertical swing louver: The louver automatically swings up and down. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Cooling operation at 52°C: High cooling capacity is maintained even at an outdoor temperature of 52℃.

Capacity

Cooling   3.6 kW

RANK 5

Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
EGAT Capacity Cooling 12500 (3000 - 13000) BTU/h
SEER 18 BTU/h
Rank 5
Capacity Cooling 3.6 (0.9 - 3.8) kW
Input Power Cooling 1.150 kW
EER Cooling 3.13 W/W
Starting Current 5.7 A
Max. Operating Current Cooling 7.00 A
Moisture Removal 1.50 l/h
Sound Pressure Level*2 Indoor (Cooling) High 43 dB(A)
Middle 35 dB(A)
Low 30 dB(A)
Quiet 22 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 50 dB(A)
Air Flow Rate Indoor (Cooling) High 560 m³/h
Outdoor (Cooling) High 1680 m³/h
Net Dimensions
Indoor		 Height 270 mm
Width 784 mm
Depth 224 mm
Net Dimensions
Outdoor		 Height 541 mm
Width 663 mm
Depth 290 mm
Net Weight Indoor 8.5 kg
Outdoor 22.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max Pipe Length (Pre Charge) 20.0 (10.0) m
Max Height Difference 15 m
Operation Range Cooling 18 to 52 °CDB
Refrigerant Type R32
Charge 420 g
