AIRSTAGE™ VRF Service & Maintenance

UTY-ASGXZ1

Software

UTY-AMGXZ1

Software

UTY-ASGX Features

Extensive monitoring and analysis functions for installation and maintenance

  • Operation status can be checked and analyzed to detect even the smallest abnormalities
  • Storage of data on system operation status on a PC allows access even from off site.
  • Up to 400 indoor units (a single VRF network system) can be controlled and monitored for large scale buildings or hotels
  • This software can be connected to any point of transmission line with USB adaptor (locally purchased)
*
The saved data can be displayed offline. However, the data saved by the following model cannot be displayed.
• UTR-YSTB/UTR-YSTC (Service Tool)
• UTR-YMSA (Web Monitoring Tool)

Automatic operation check for refrigeration cycle

After product installation, operation check can be performed automatically. Self-diagnosis function automatically judges whether each sensor value is normal, so the operation check work can be reduced. The diagnosis can also be output as a report.

Whether each sensor value is normal is judged automatically.

  • Discharge temperature normal value OK
  • Super heat volume normal value OK
  • High pressure pipe normal value OK
  • Low pressure pipe normal value OK …etc.
[Note]
Use only as a guide and judge for yourself finally.

Remote technical support & maintenance

On-site check screen can be shared with the skilled person in a distant place. When visiting for troubleshooting on site, operation status can be shared in real time and get assistance easily. Online chat function helps to support on site staff.

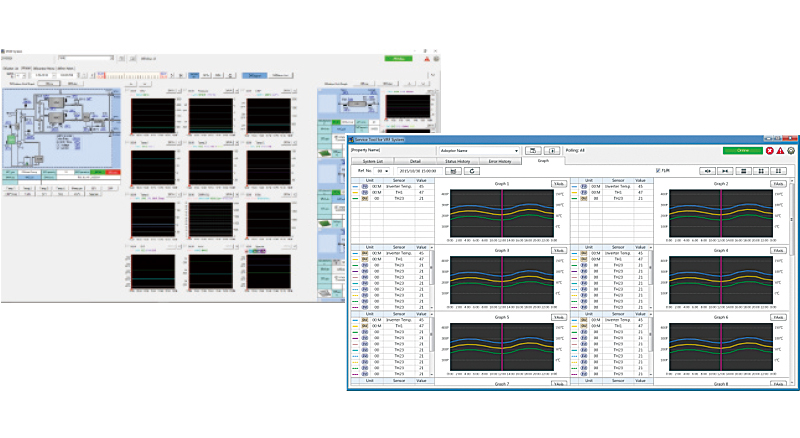

Various trend graph display

Previously, only 3 kinds of each sensor value can be displayed. However, multiple graphs can be displayed in new Service Tool depending on the situation. The refrigeration cycle can be checked in detail.

Personal computer system requirements

UTY-ASGXZ1

Operating system

  • Microsoft® Windows® 7 Professional (32-bit or 64-bit) SP1
  • Microsoft® Windows® 8.1 Pro (32-bit or 64-bit)
  • Microsoft® Windows® 10 Pro (32-bit or 64-bit)

CPU

1 GHz or higher

Memory

  • 1 GB or more (for Windows Vista®, Windows® 7 [32-bit], Windows® 8.1 [32-bit], and Windows® 10 [32-bit])
  • 2 GB or more (for Windows® 7 [64-bit], Windows® 8.1 [64-bit], and Windows® 10 [64-bit])

HDD

40 GB or more of free space

Display

1366 x 768 or higher resolution

Interface

  • 2 USB ports*
*
1 USB port is required for software protection key connection
1 USB port is required for Echelon® U10 USB Network Interface

Software

Internet Explorer® 11 or Microsoft Edge / Adobe® Reader® 9.0 or later

Packing list

WHITE-USB-KEY (Software protection key) × 1
Software protection key to be connected to USB port on the Service Tool-installed PC. These products run on a PC with WibuKey or White-USB-Key.

UTY-AMGXZ1 Features

Product features

  • Troubleshooting is performed by monitoring each air conditioning unit remotely during periodical system checks.
  • Error notification can be automatically transmitted to several locations using the internet*1.
  • Requires either a dedicated internet connection or public telephone line.
  • Determination of an error occurrence can be made through error warnings and equipment status information obtained from a remote location.
  • The monitoring data in a remote side can be optionally downloaded. And, this data can be displayed in offline mode of the service tool.
  • Monitoring side computer is not required to install special software, requires only general web browser.
*1:
Use of internet mail system required.

Web Monitoring System

Support 4 VRF network systems

USB adaptor (max. 4 adaptors per PC) permit, monitoring of up to 1,600 indoor units. Suitable for large-scale buildings or hotels.

Personal computer system requirements

UTY-AMGXZ1

Operating system

  • Microsoft® Windows® 7 Professional (32-bit or 64-bit) SP1
  • Microsoft® Windows® 8.1 Pro (32-bit or 64-bit)
  • Microsoft® Windows® 10 Pro (32-bit or 64-bit)

CPU

1 GHz or higher

Memory

  • 1 GB or more (for Windows Vista®, Windows® 7 [32-bit], Windows® 8.1 [32-bit], and Windows® 10 [32-bit])
  • 2 GB or more (for Windows® 7 [64-bit], Windows® 8.1 [64-bit], and Windows® 10 [64-bit])

HDD

40 GB or more of free space

Display

1366 x 768 or higher resolution

Interface

  • USB port (for 10 USB Network Interface Max.4, Software protection key)
  • Either of the following interface is required for remote connection: - Internet using LAN: Ethernet port is required

Software

Internet Explorer® 11 or Microsoft Edge / Adobe® Reader® 9.0 or later

Packing list

WHITE-USB-KEY (Software protection key) × 1
Software protection key to be connected to USB port on the Service Tool-installed PC. These products run on a PC with WibuKey or White-USB-Key.
